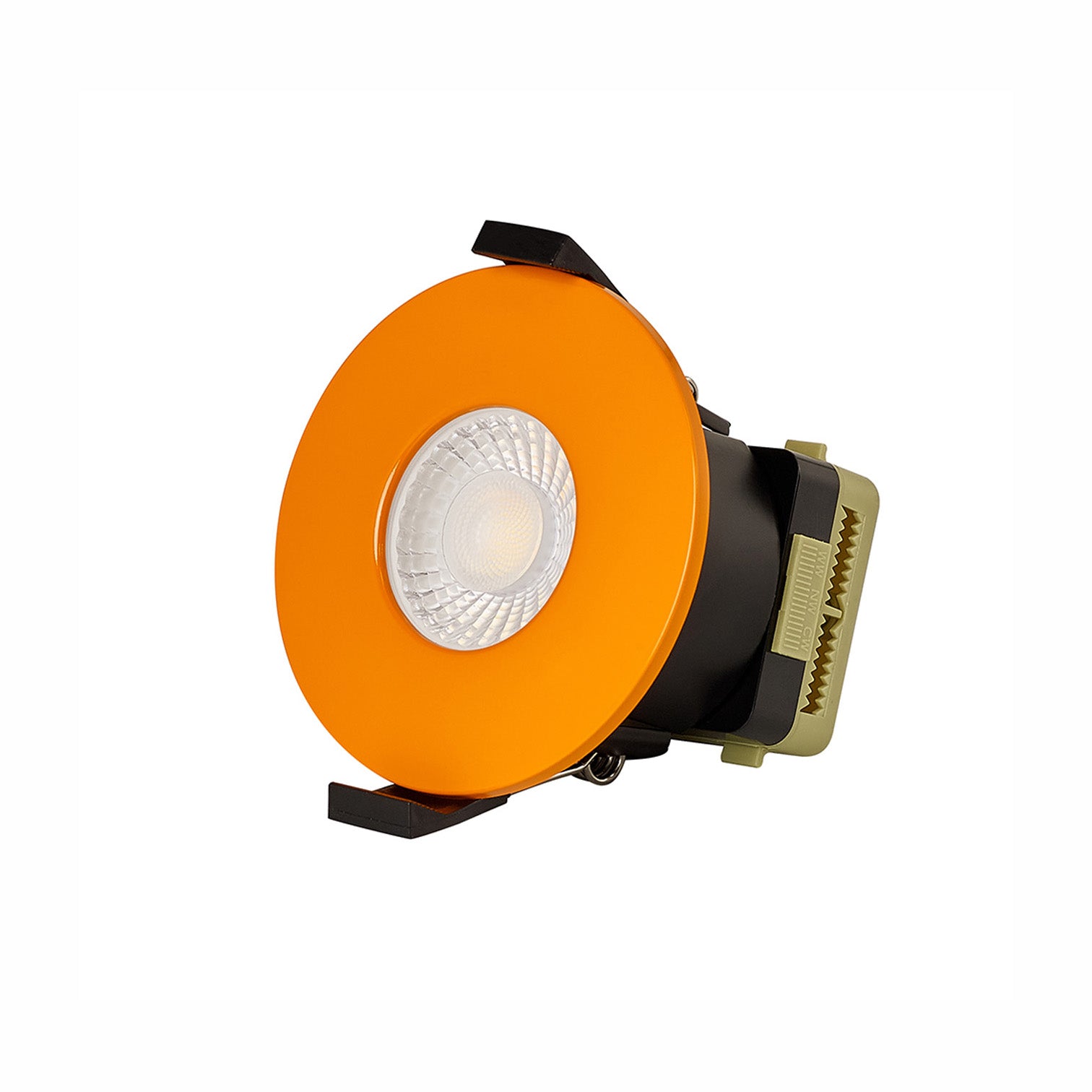

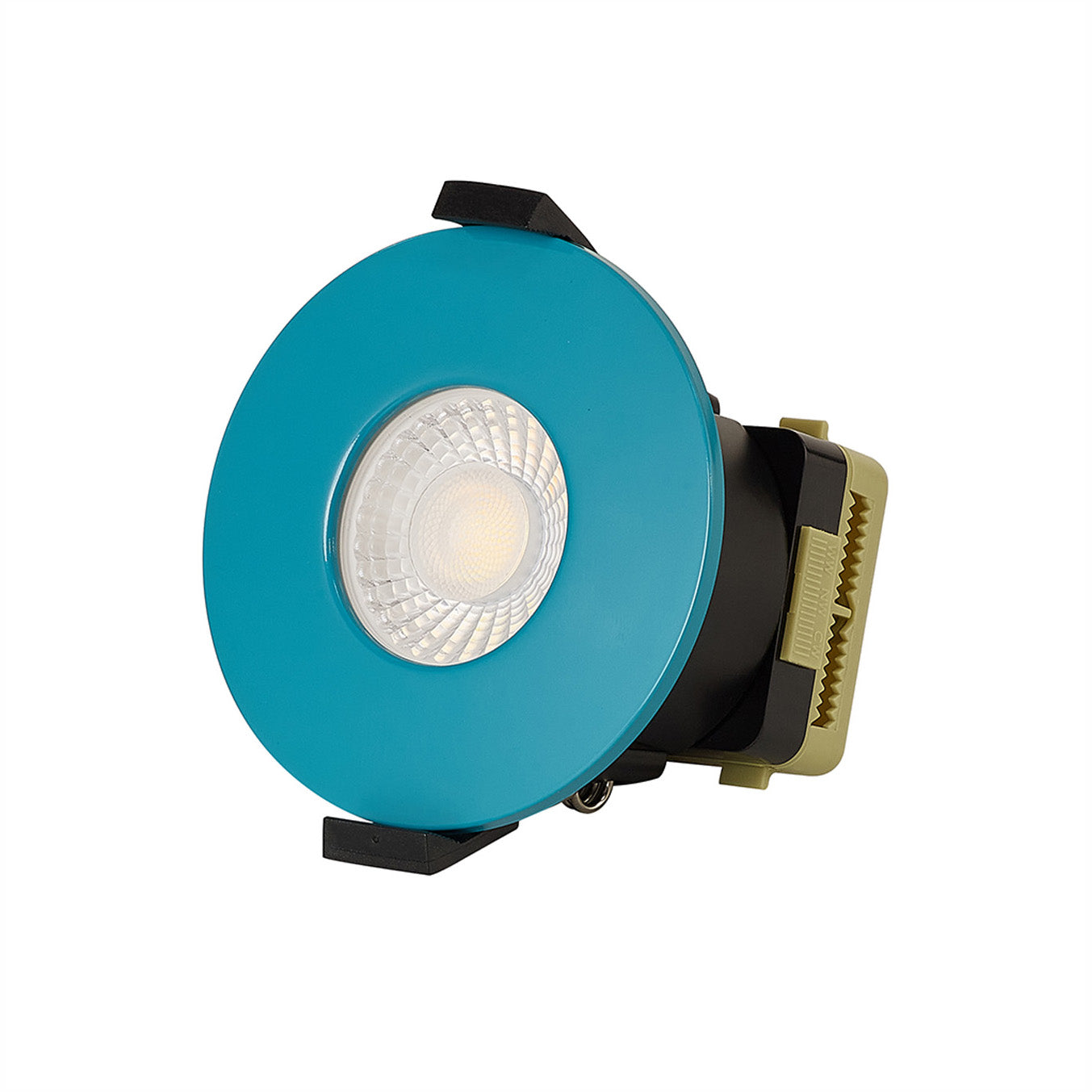

Chameleon PRO LED Fire Rated Downlights - 29 Colour Options - 70mm - IP65

£24.99
Unit price per

Tax included. Shipping calculated at checkout.

Quantity

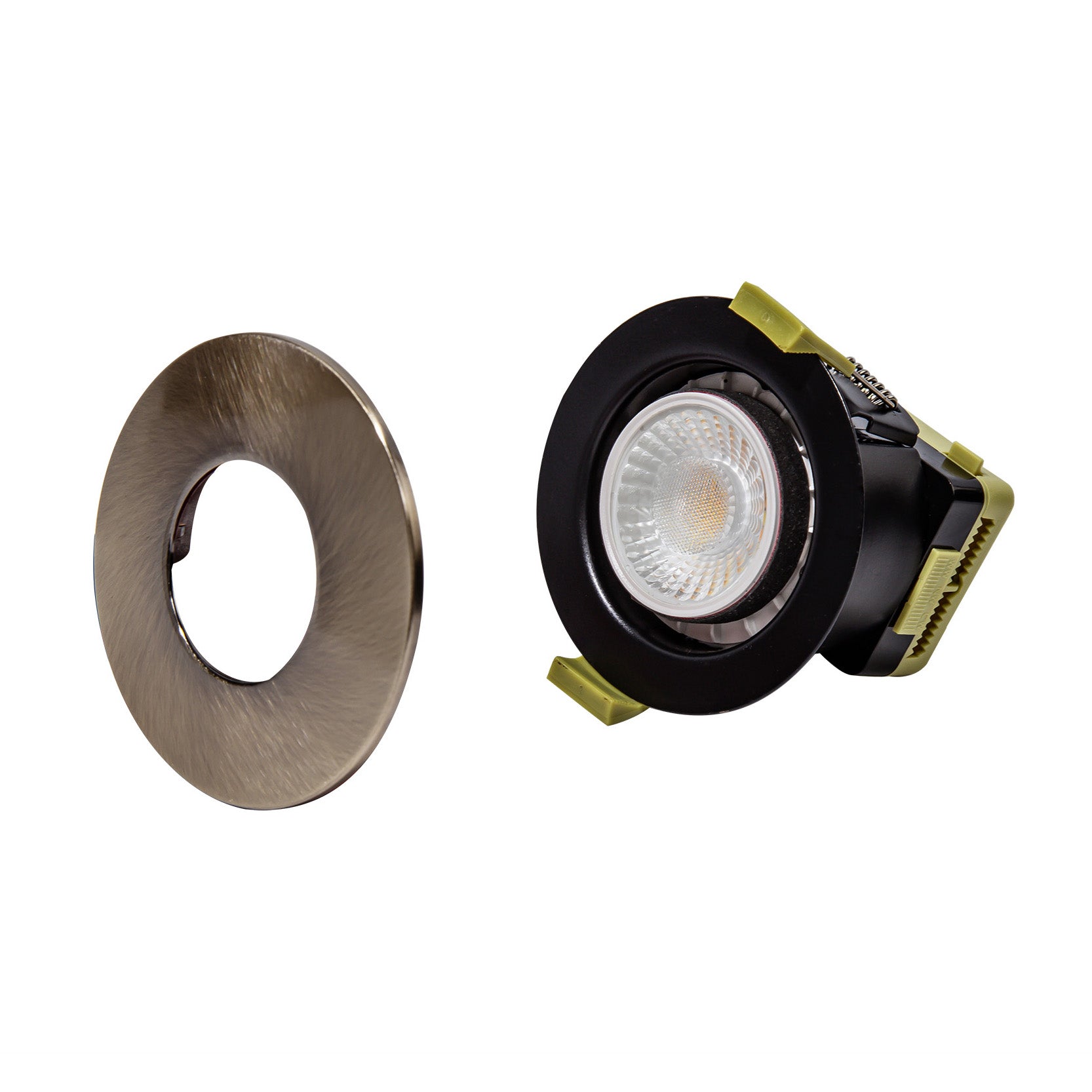

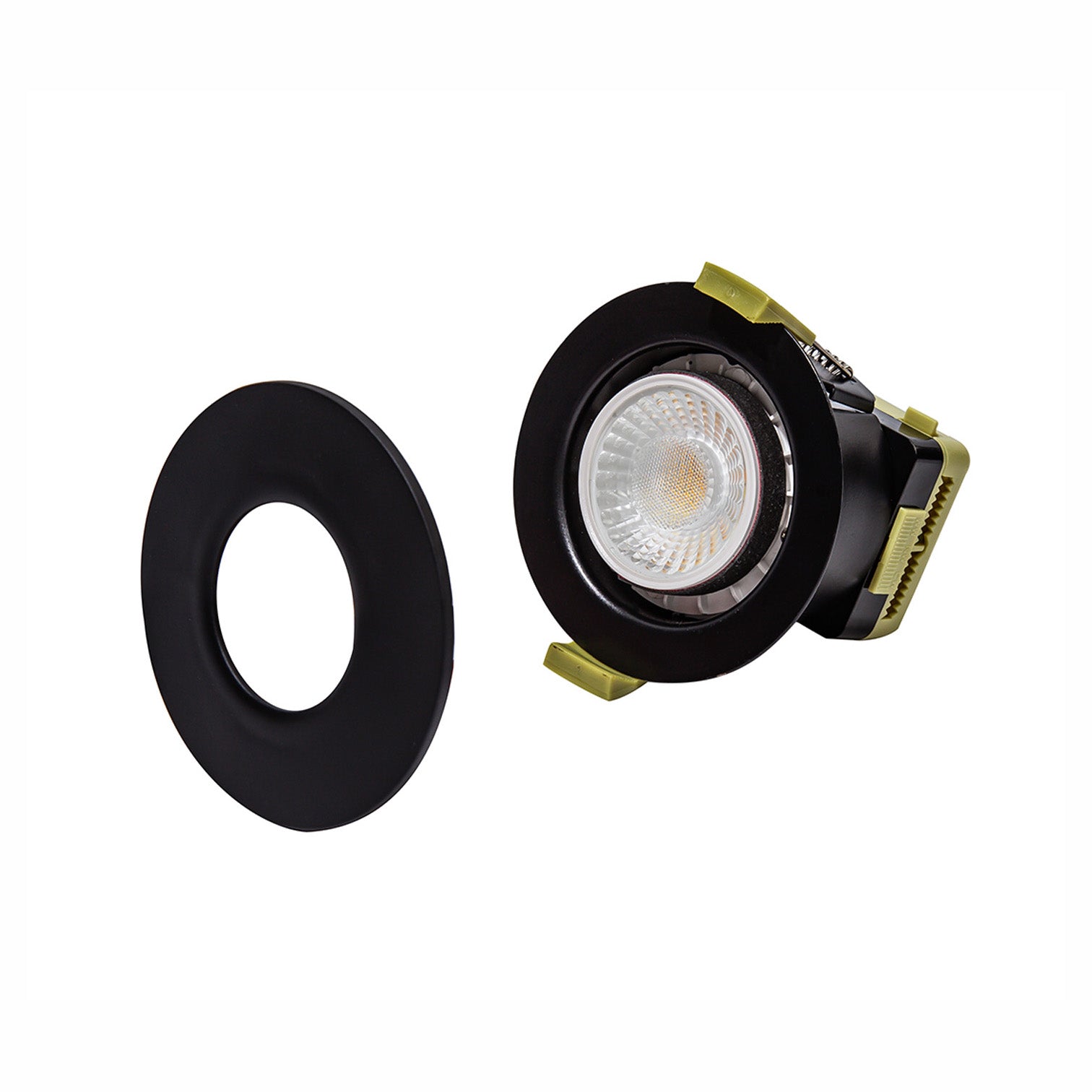

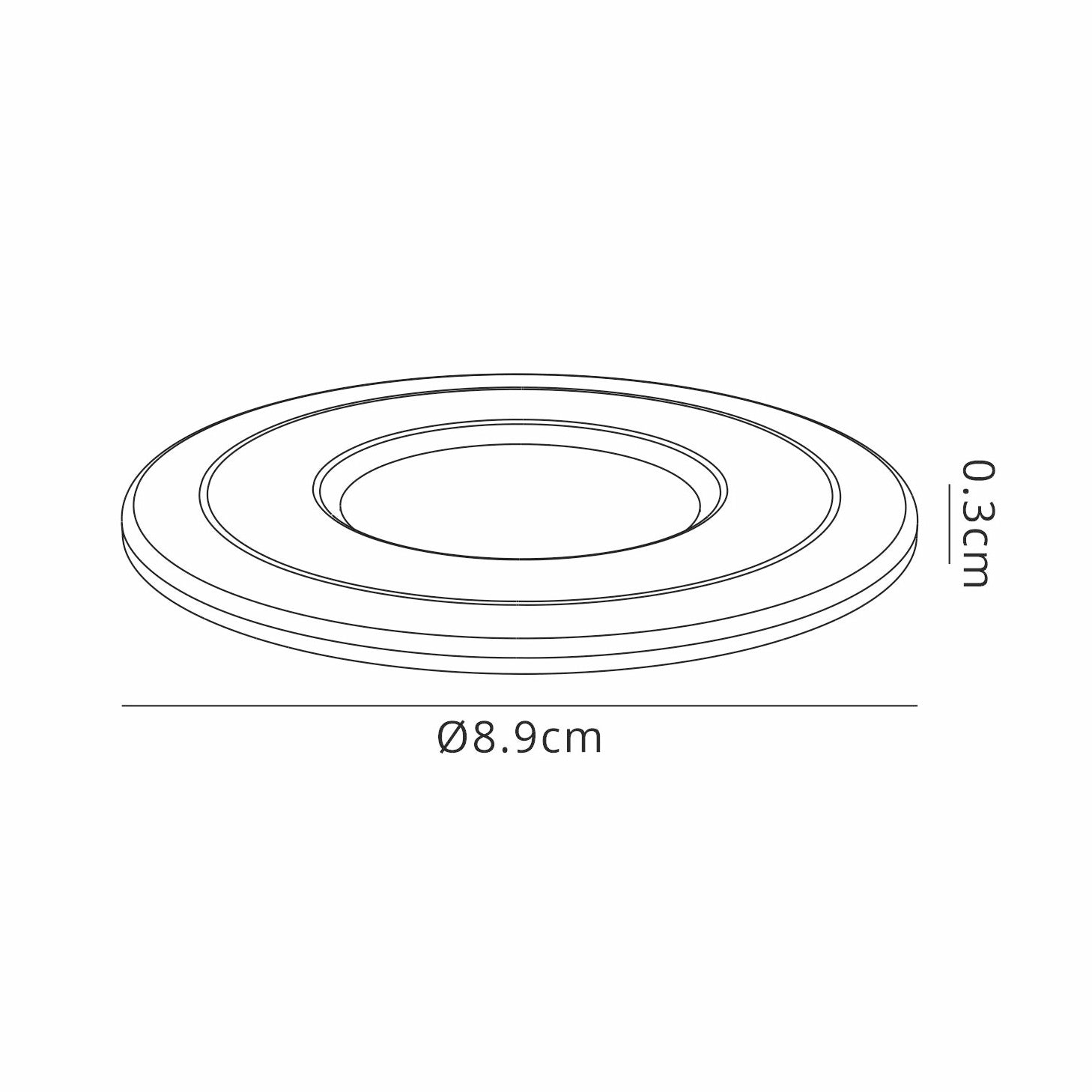

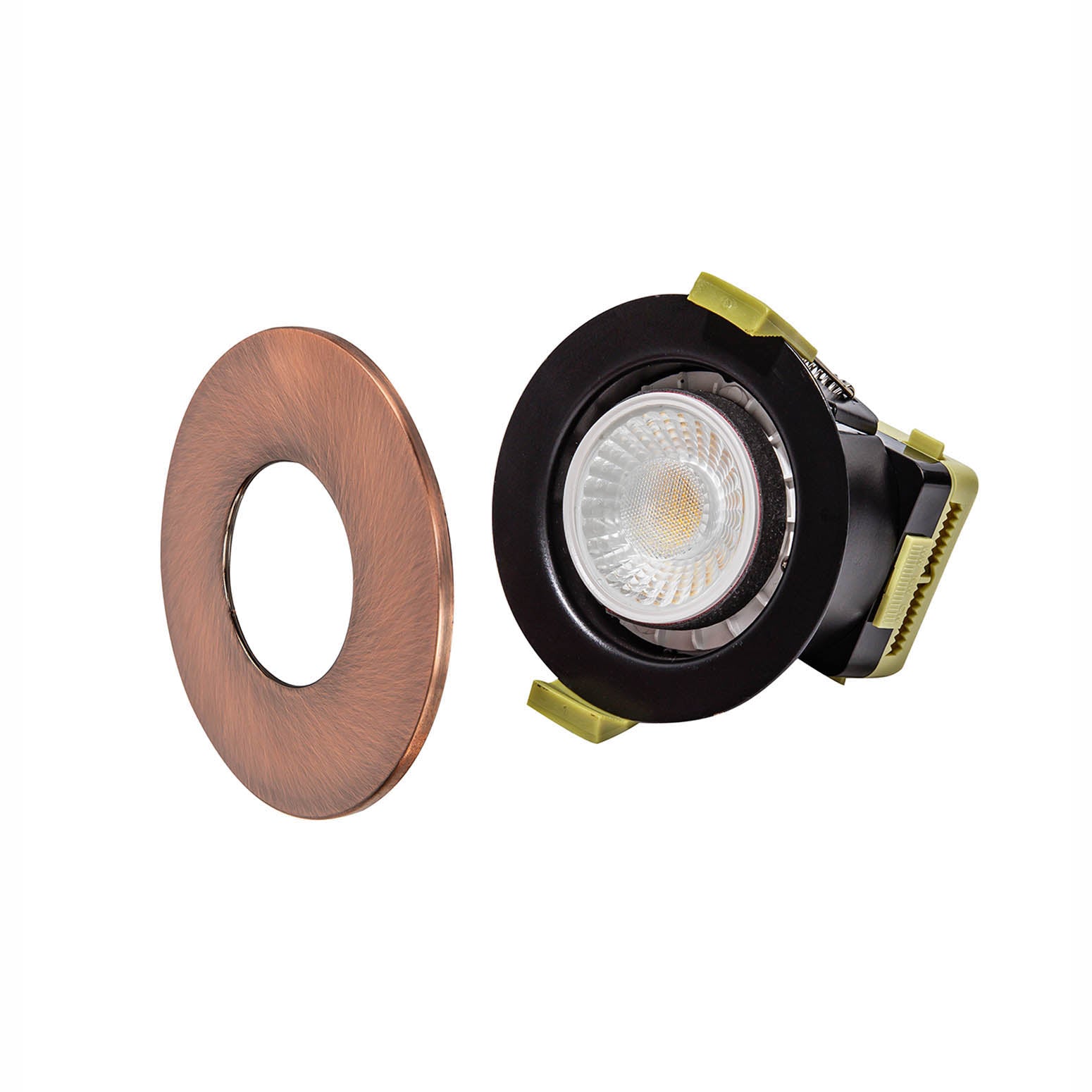

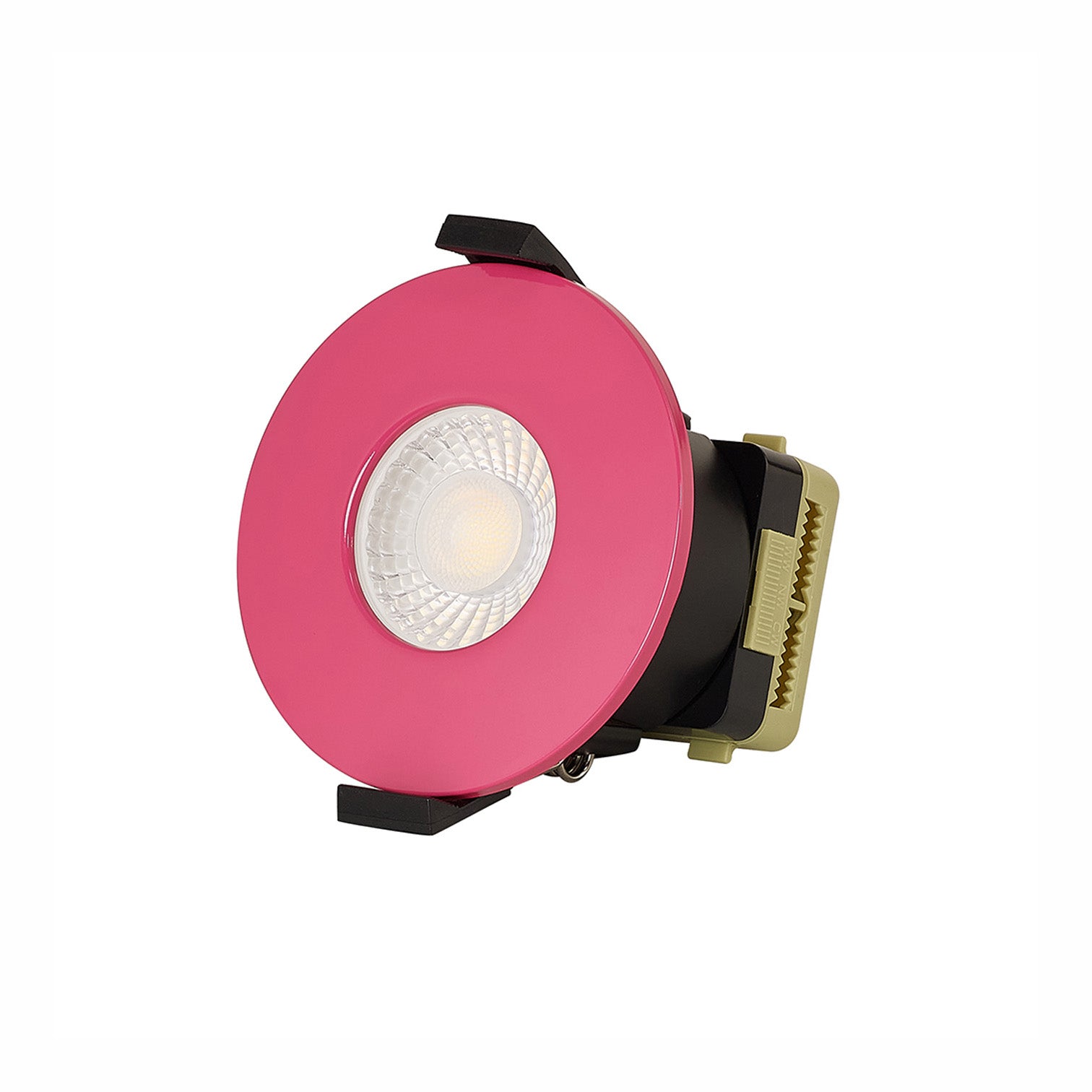

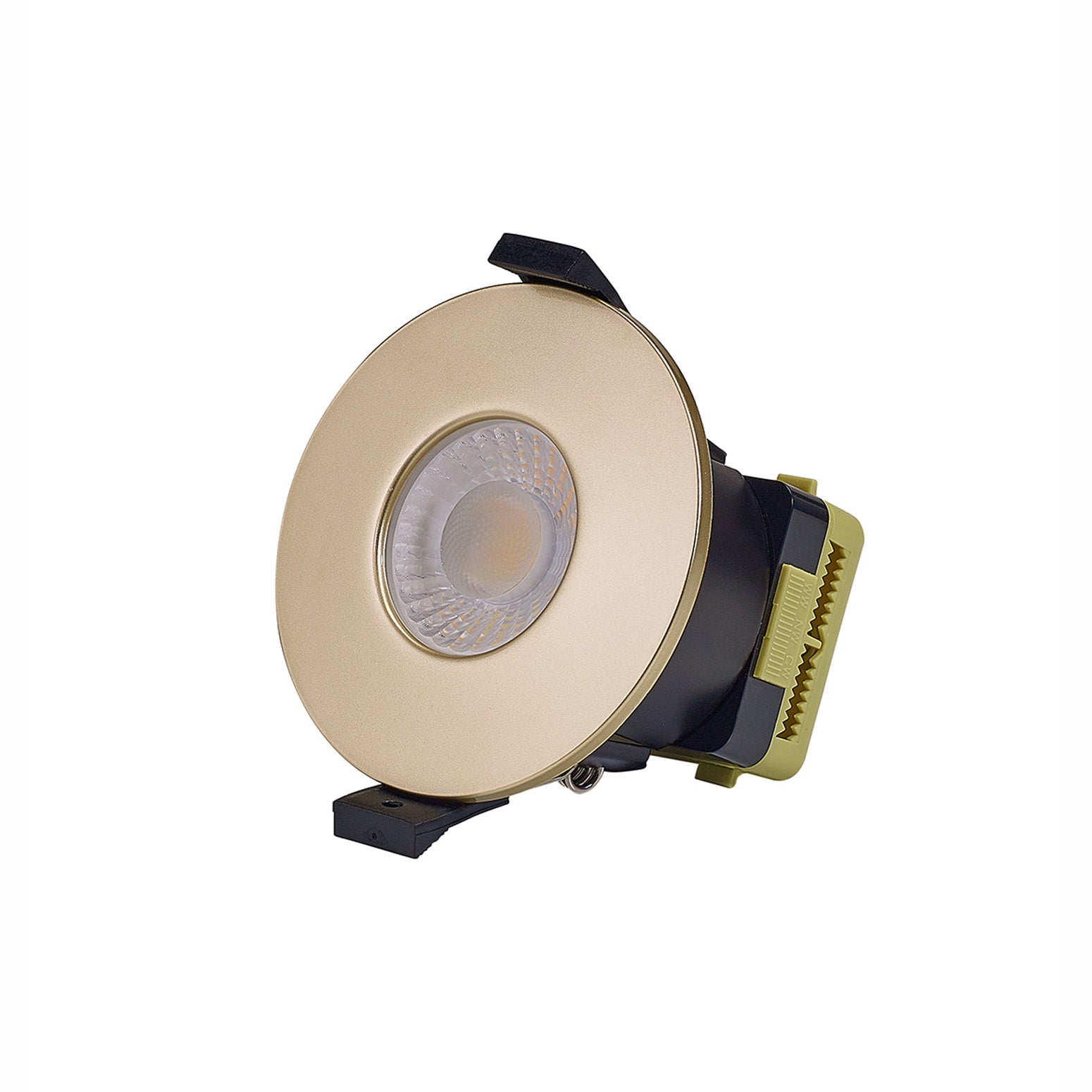

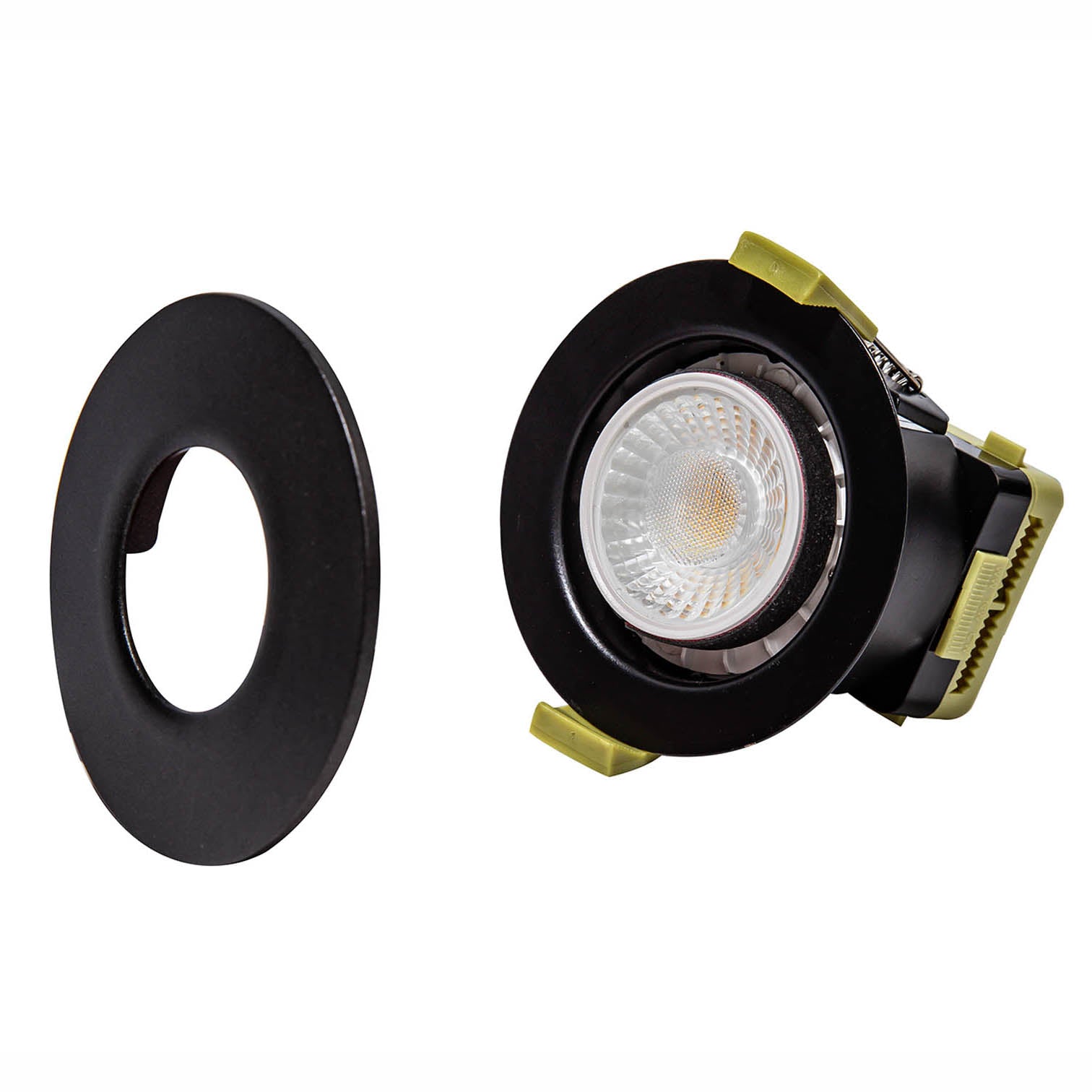

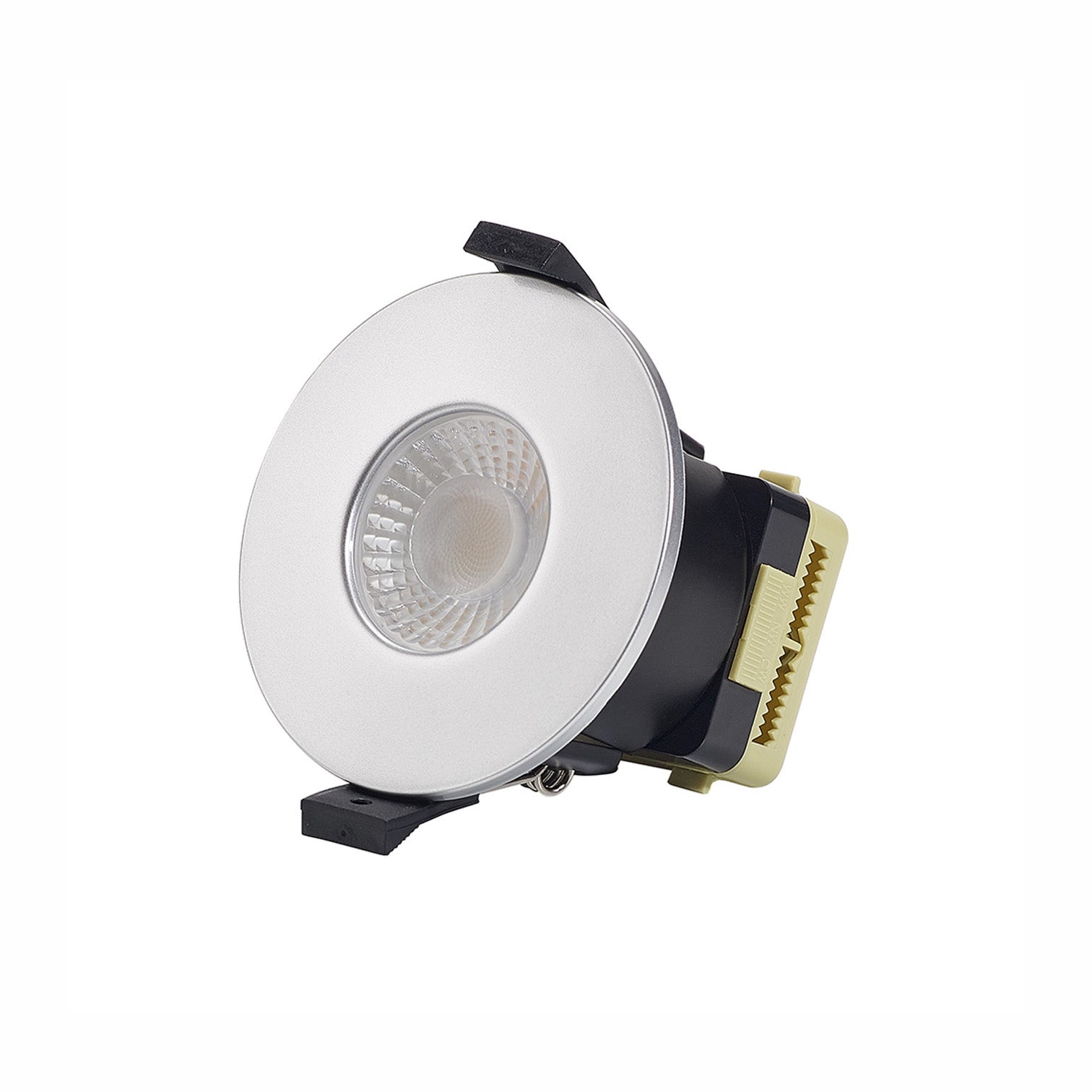

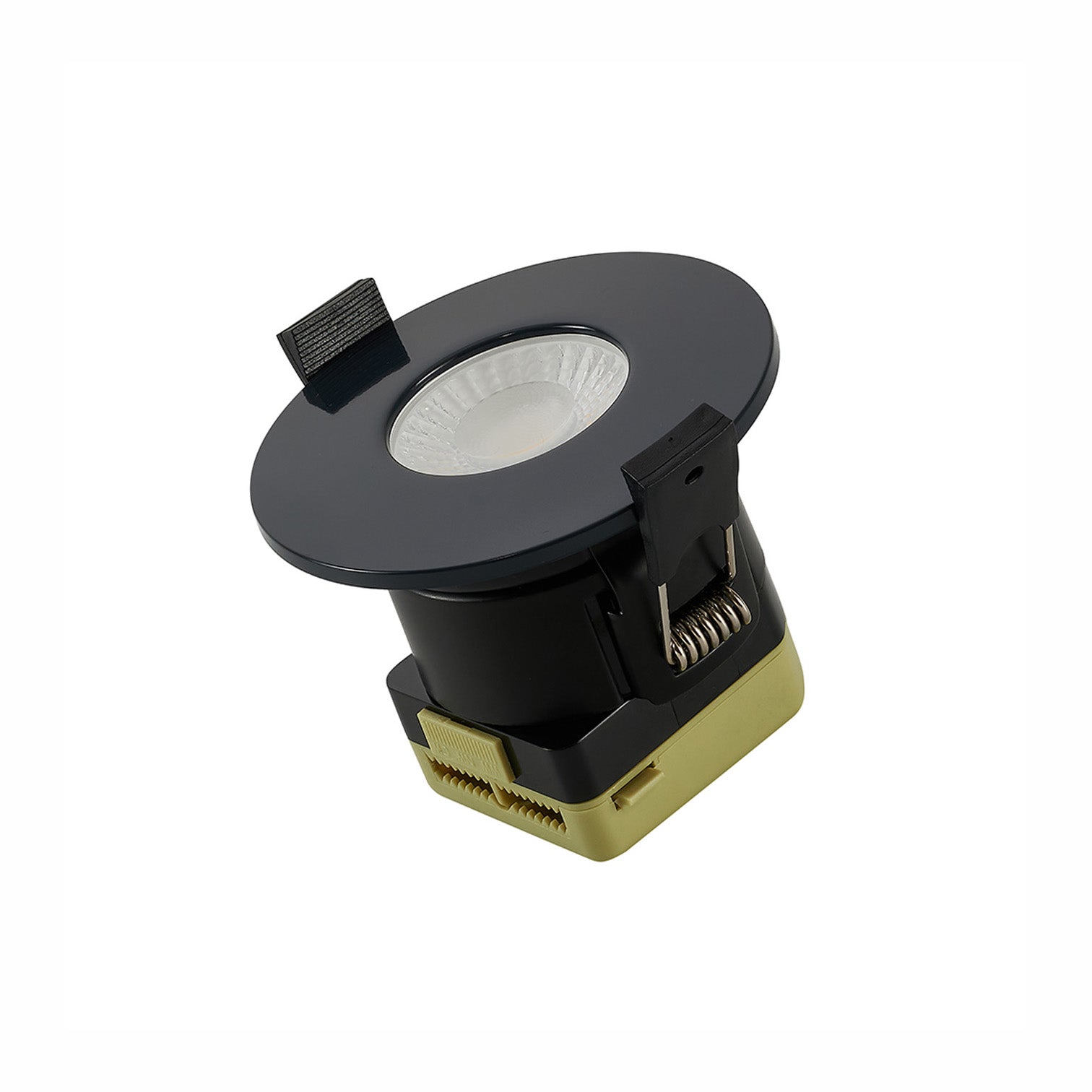

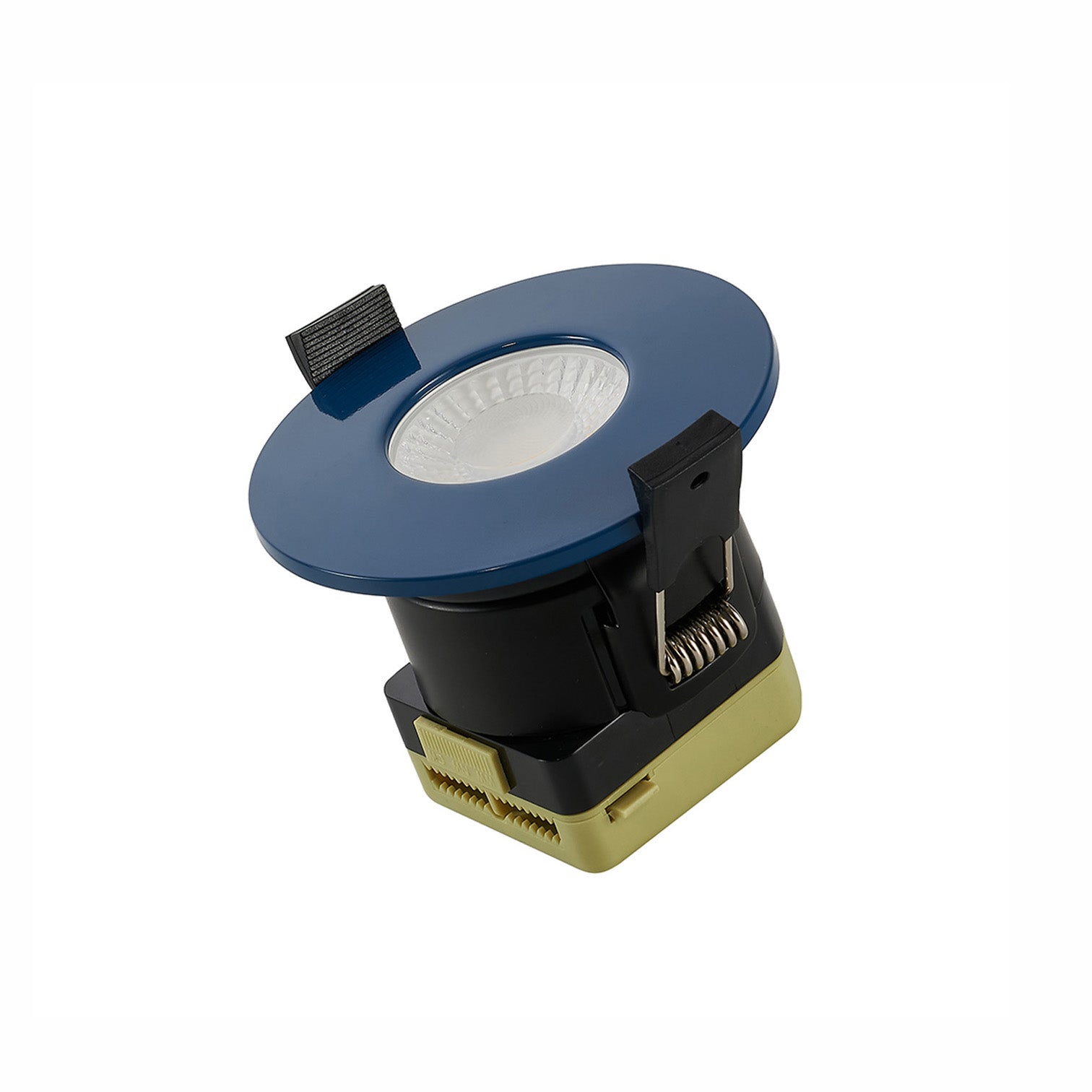

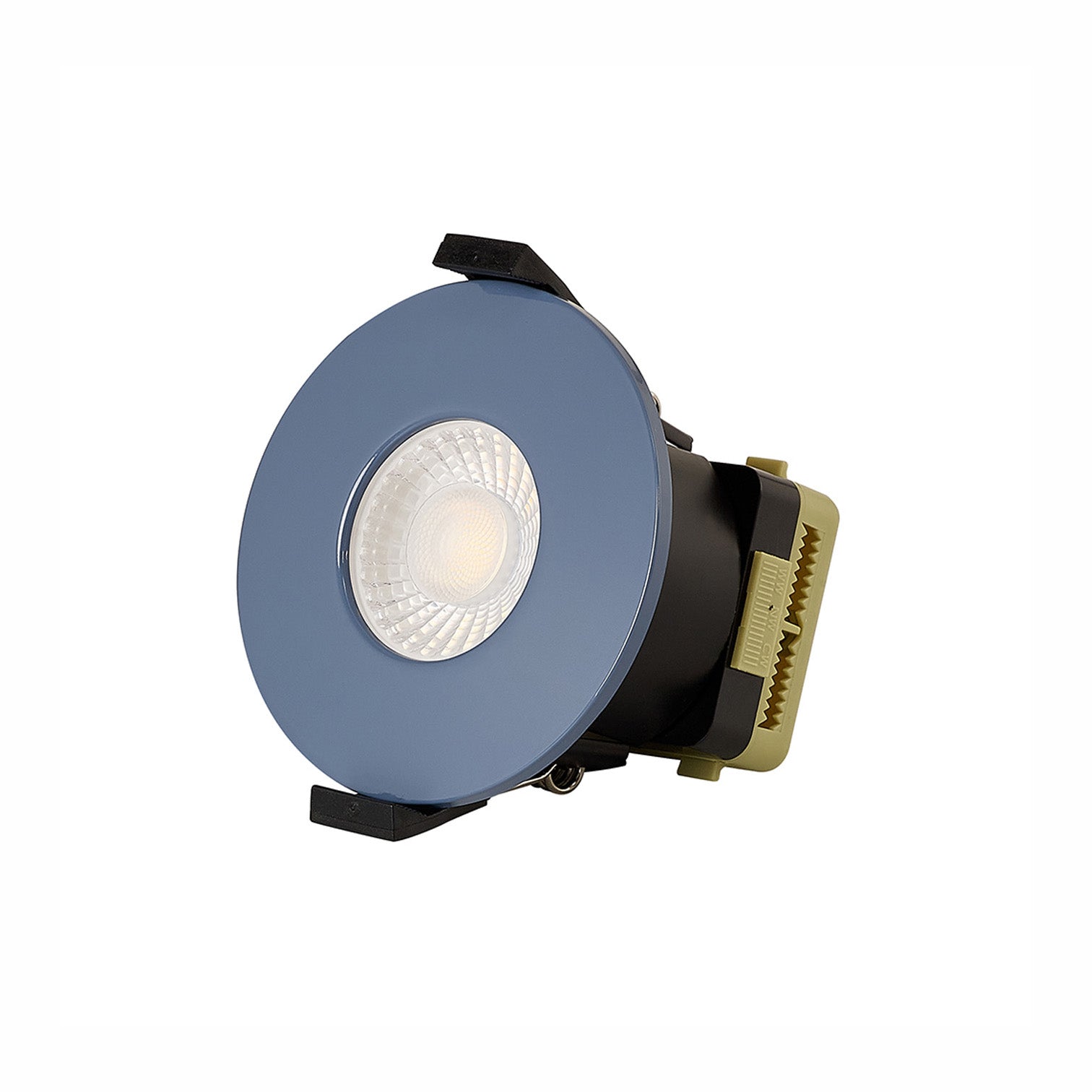

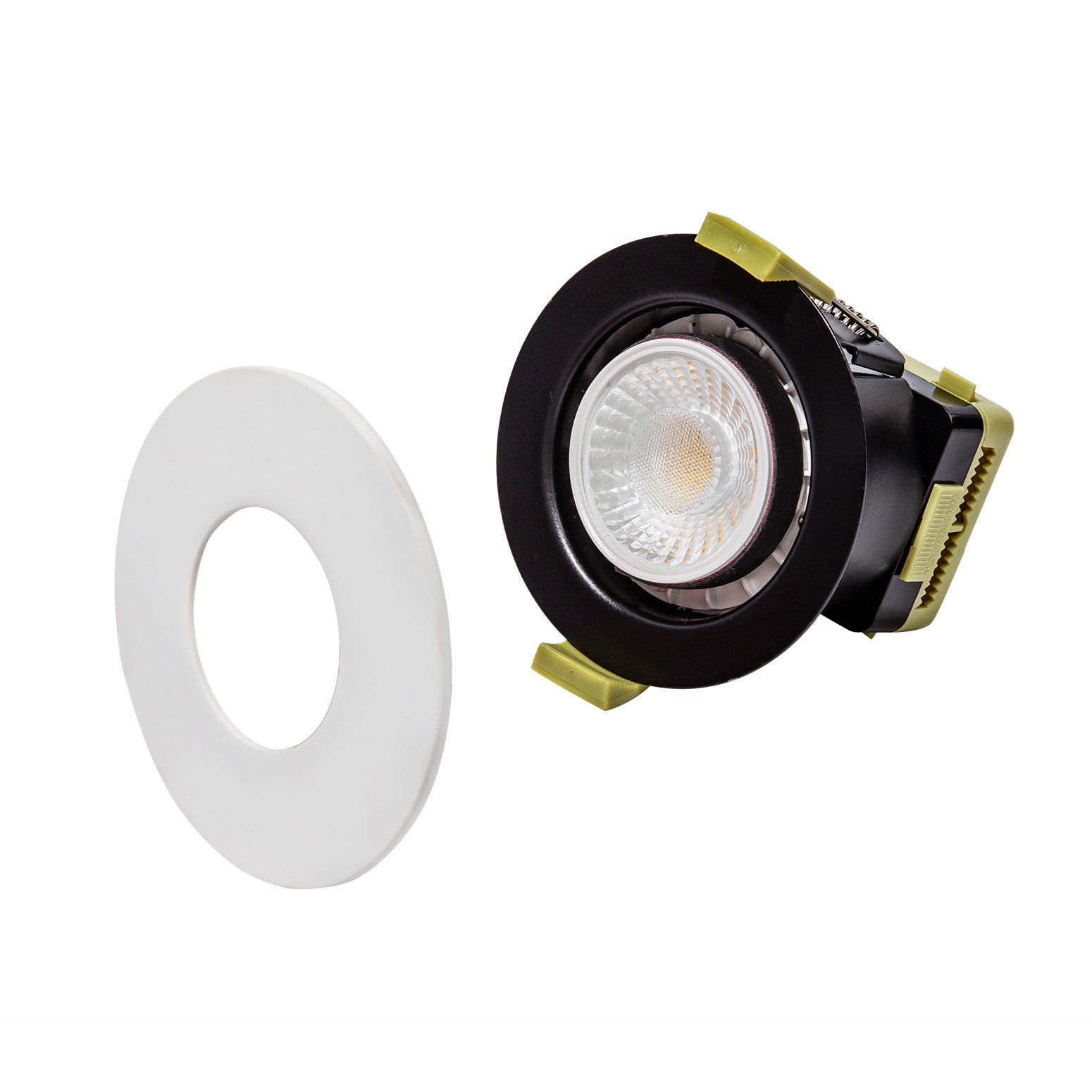

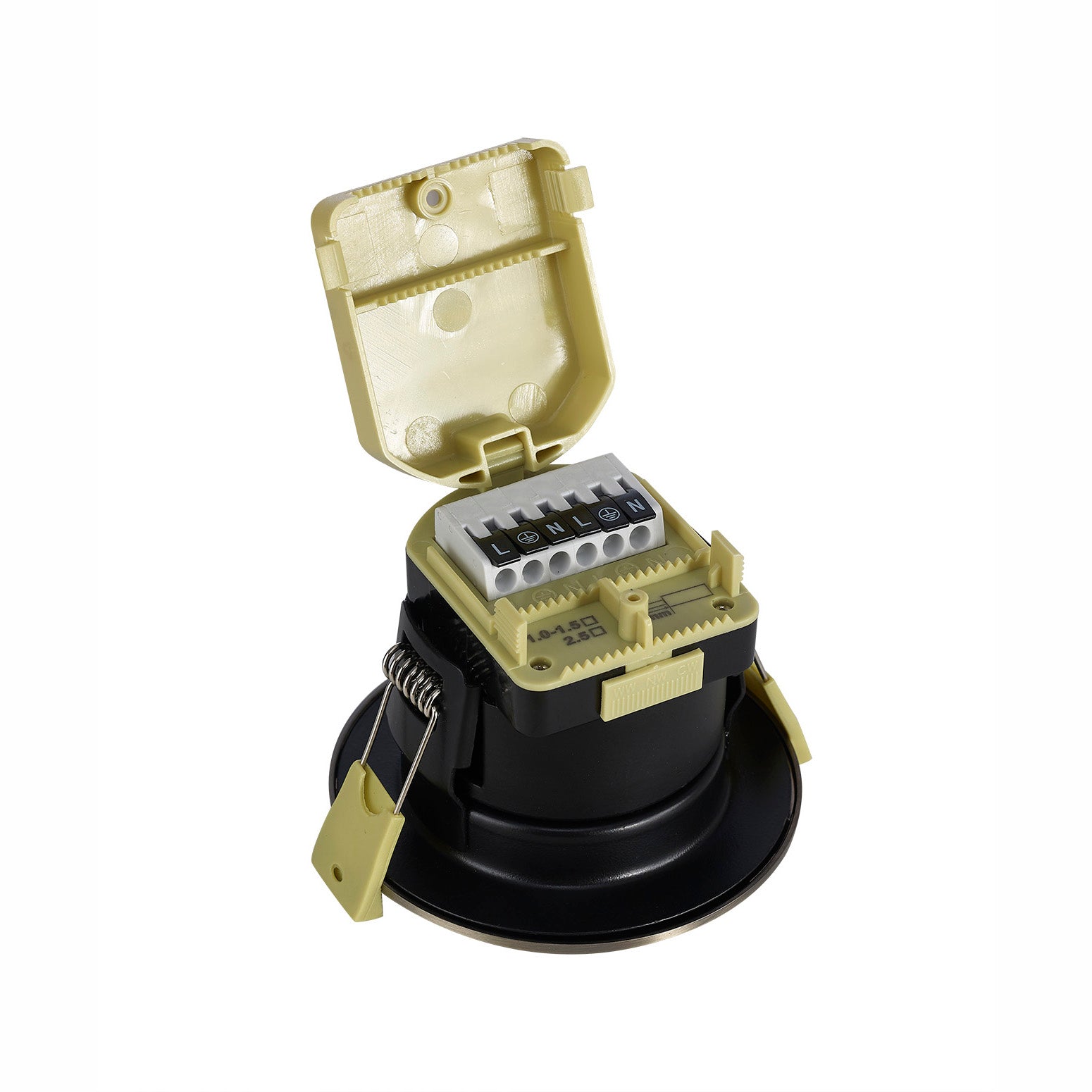

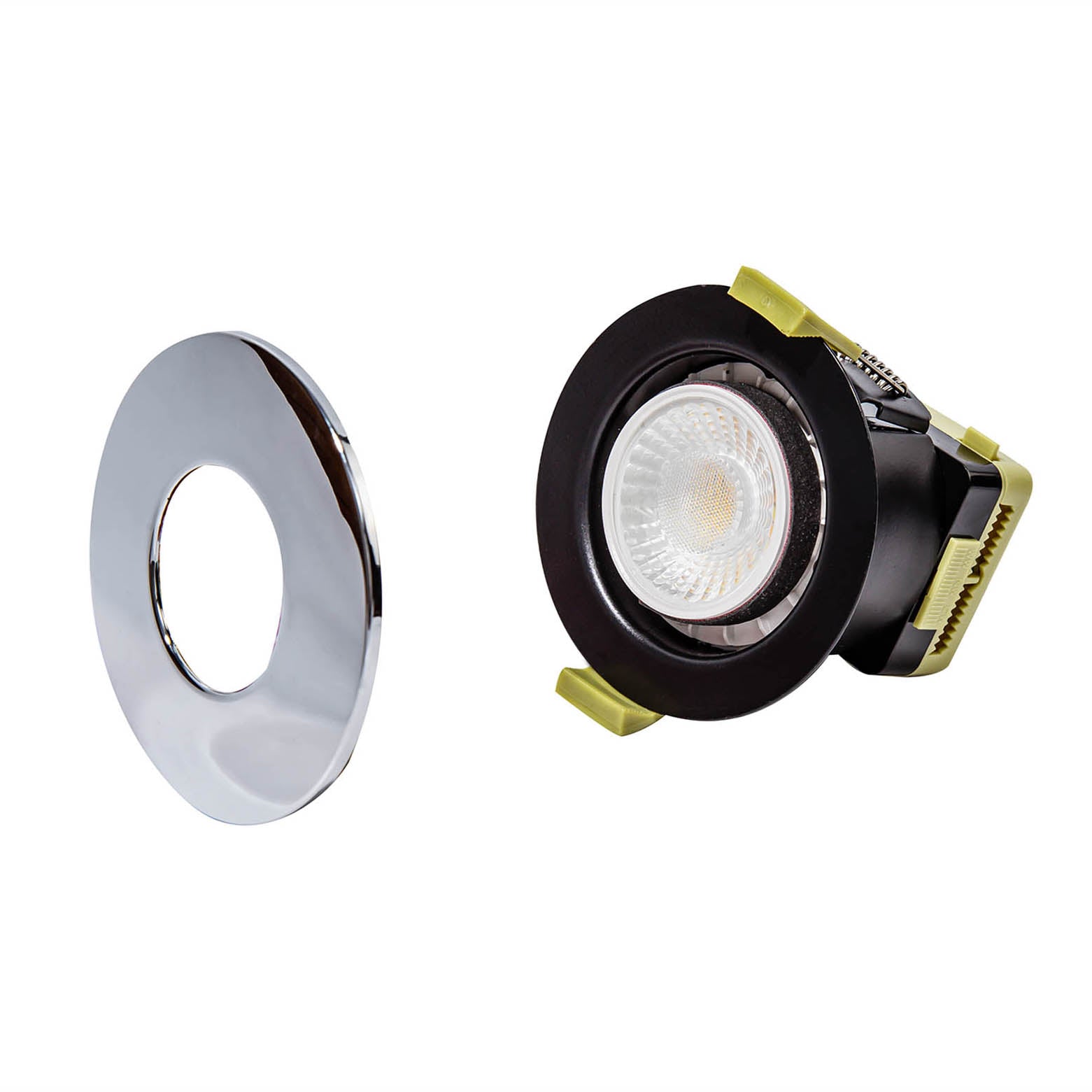

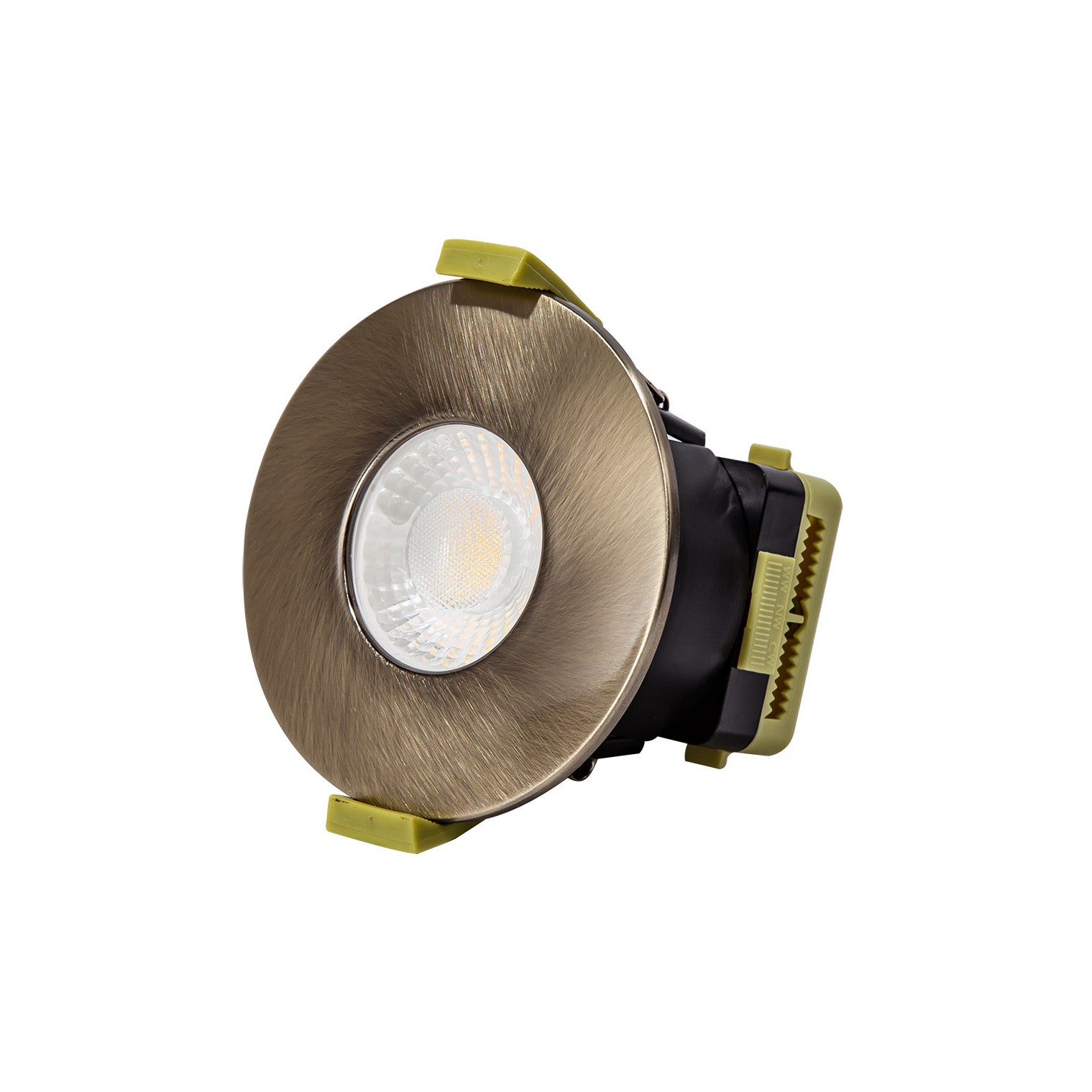

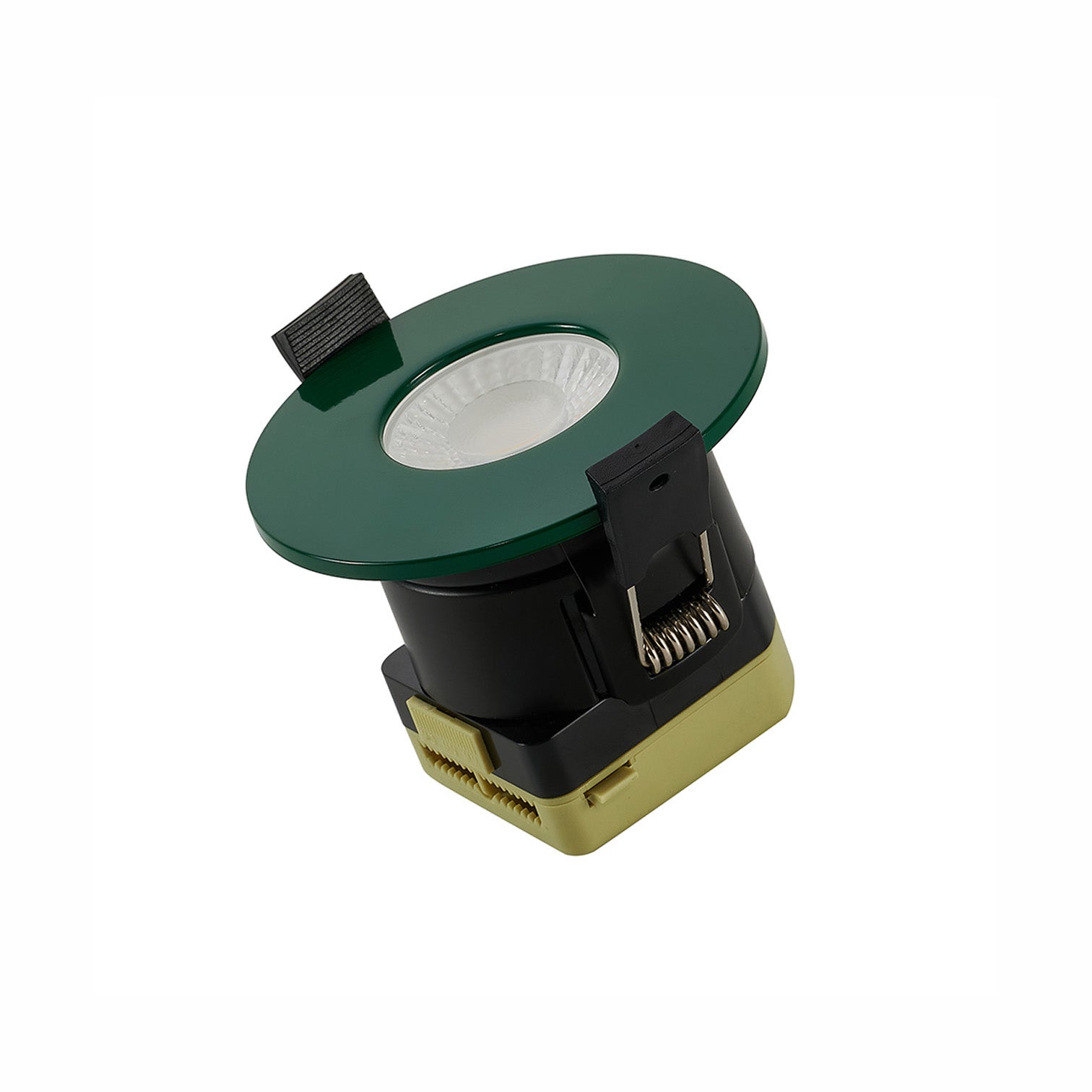

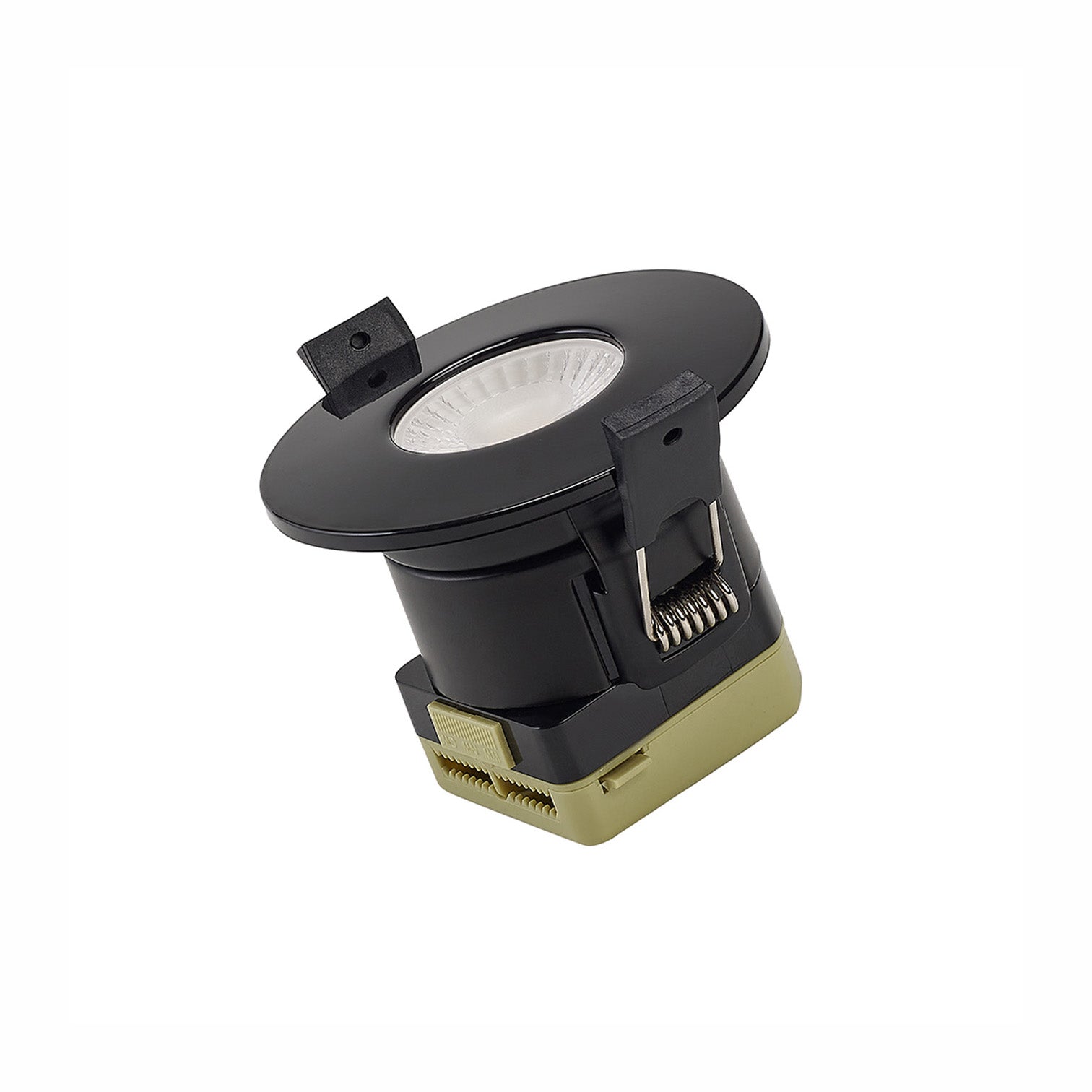

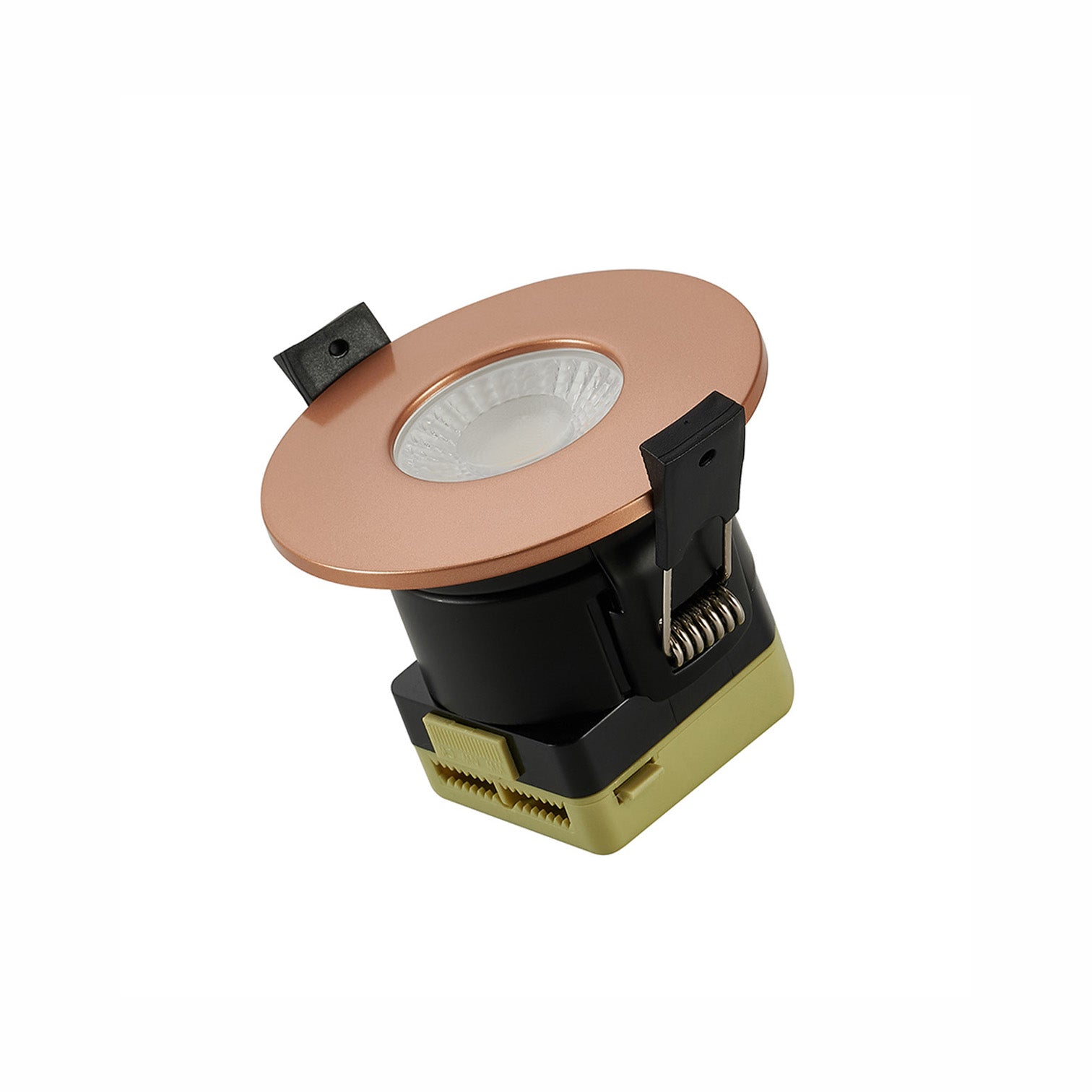

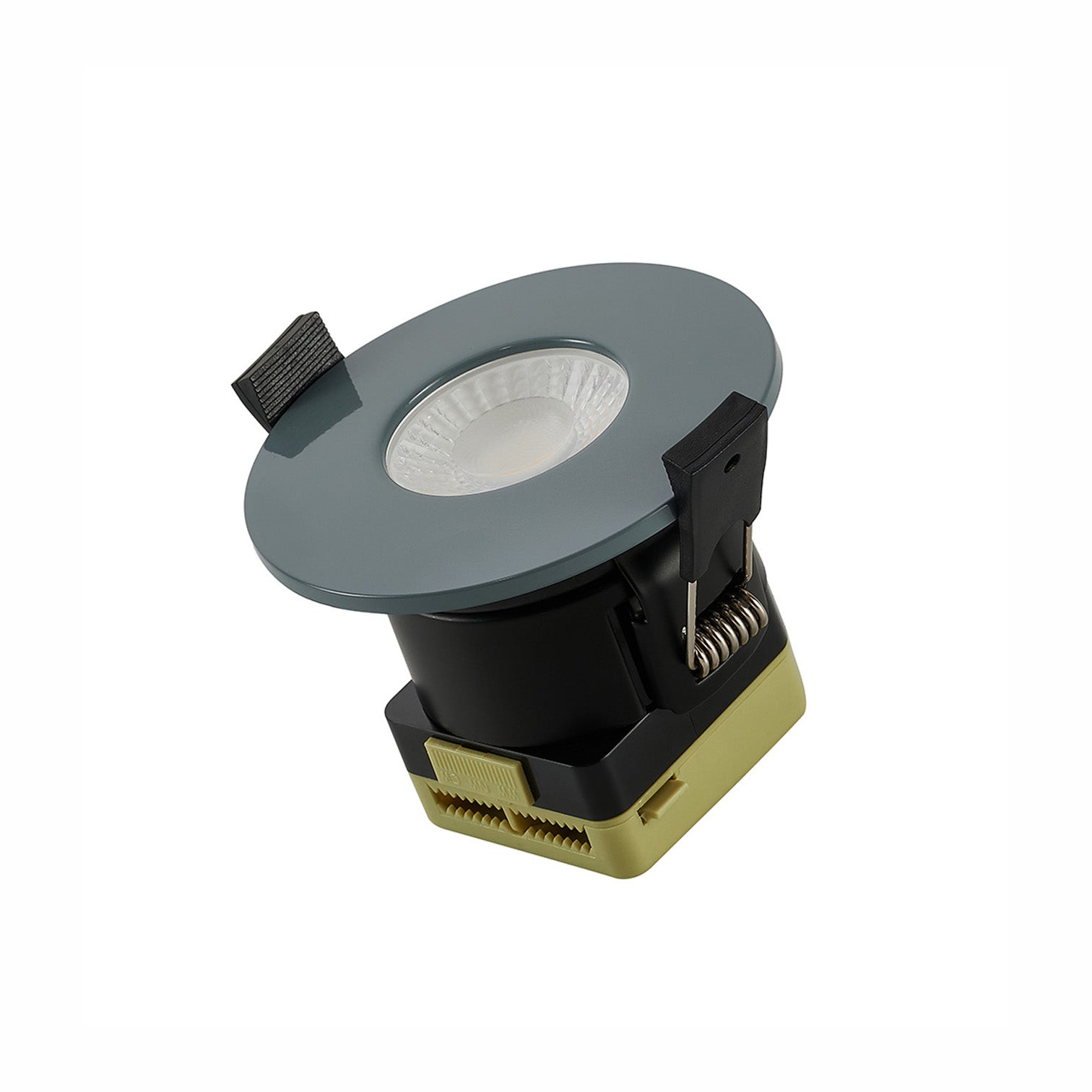

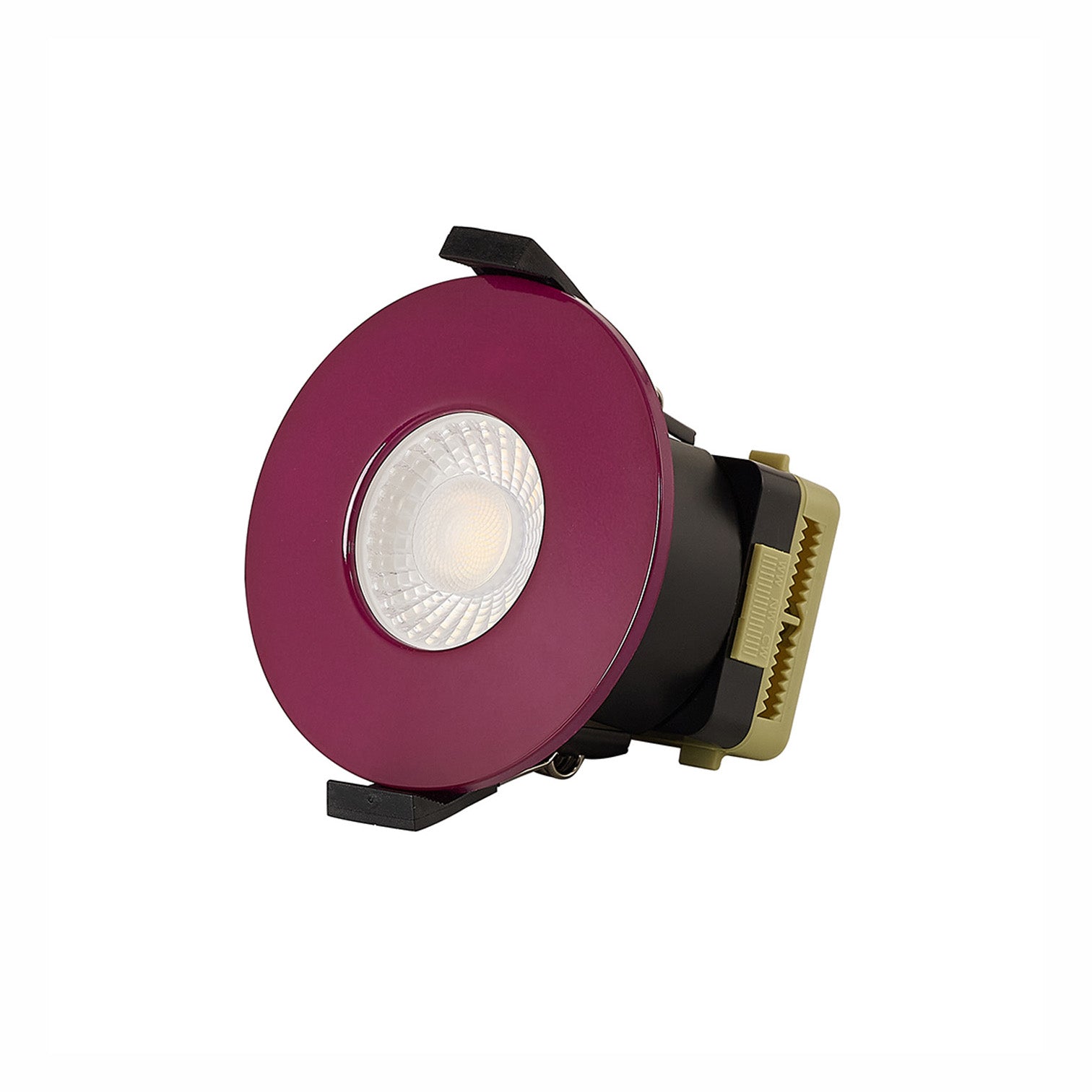

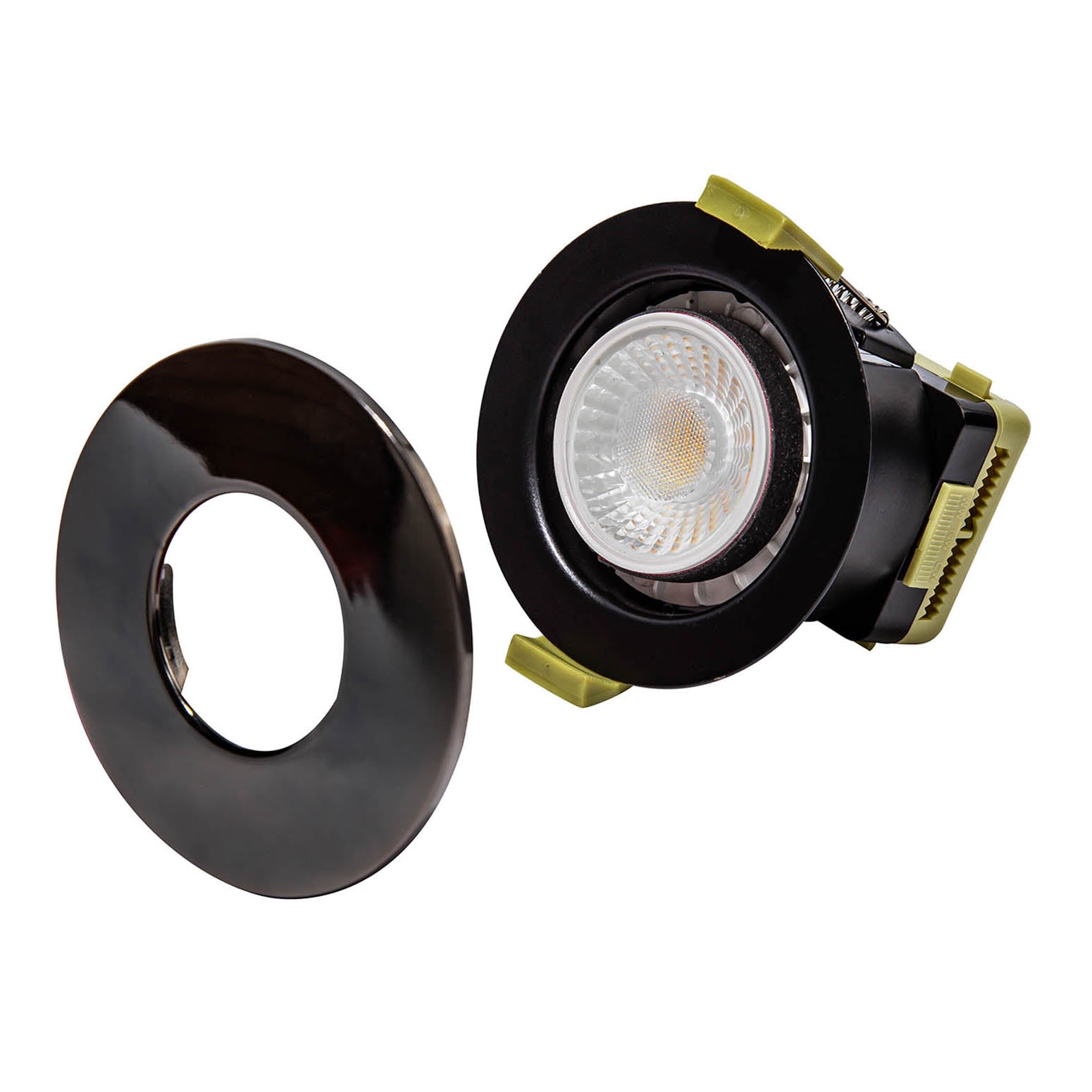

Chameleon PRO is a range of versatile and stylish Fire Rated LED downlights with numerous features and finishes. You can adjust the colour temperature to 3000K, 4000K, or 6000K with the built in CCT switch. Each downlight is Triac dimmable, have loop in/out quick fit connectors and an IP65 rating for water resistance. You can also cover them with insulation materials, making them suitable for a vast range of indoor settings. They can even be used outdoors, providing the top of the downlights are in a dry and sealed area. Chameleon PRO also offers bezels in 29 different colours to complement your chosen colour scheme. As the bezels are made from ABS, they will not rust under damp conditions.

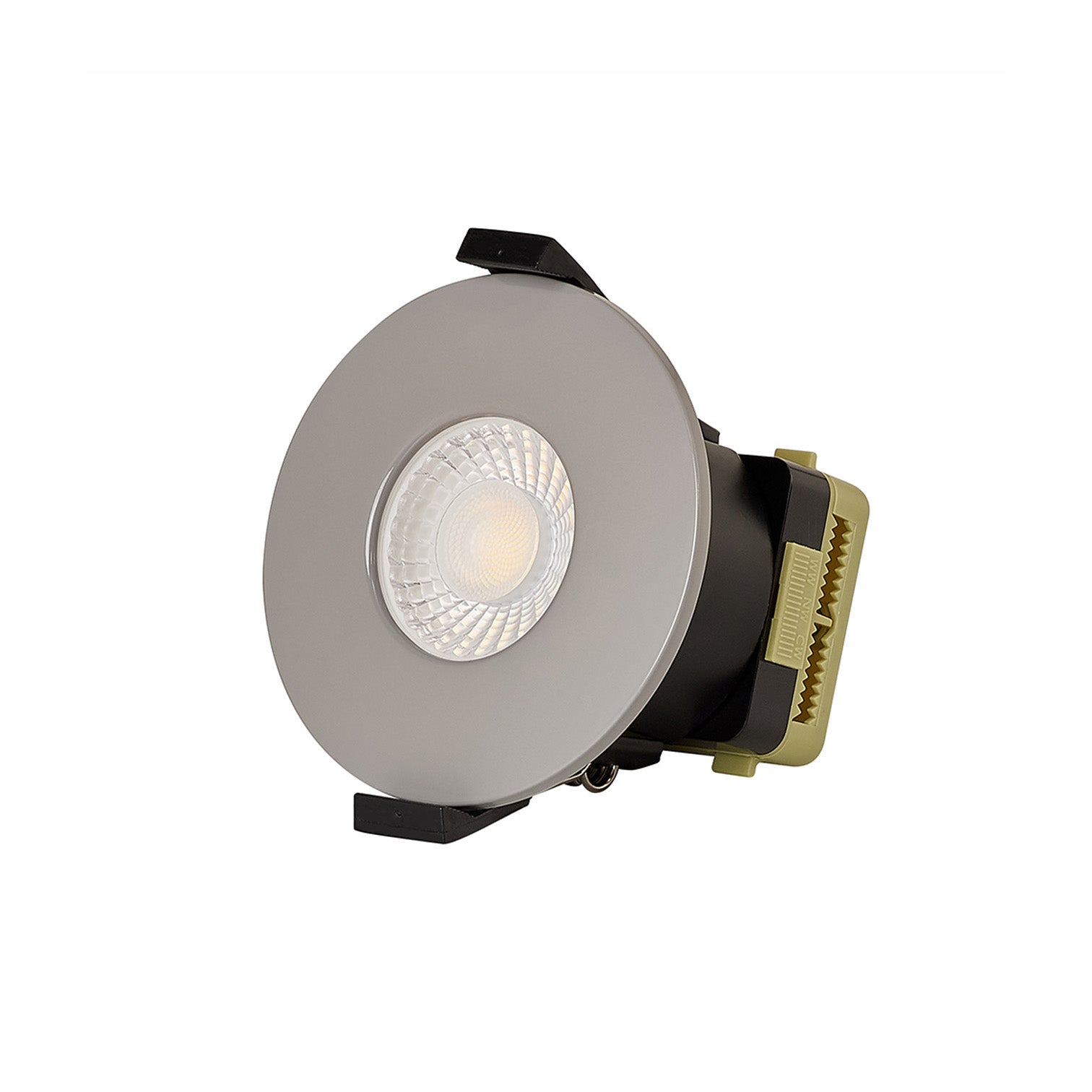

Brief Description Chameleon PRO, 8W, 90mA, Dimmable CCT LED Fire Rated Downlight, Warm Grey Fascia, Cut Out: 70mm, 60° Deg, IP65
Catalogue Description Fire Rated LED Downlight

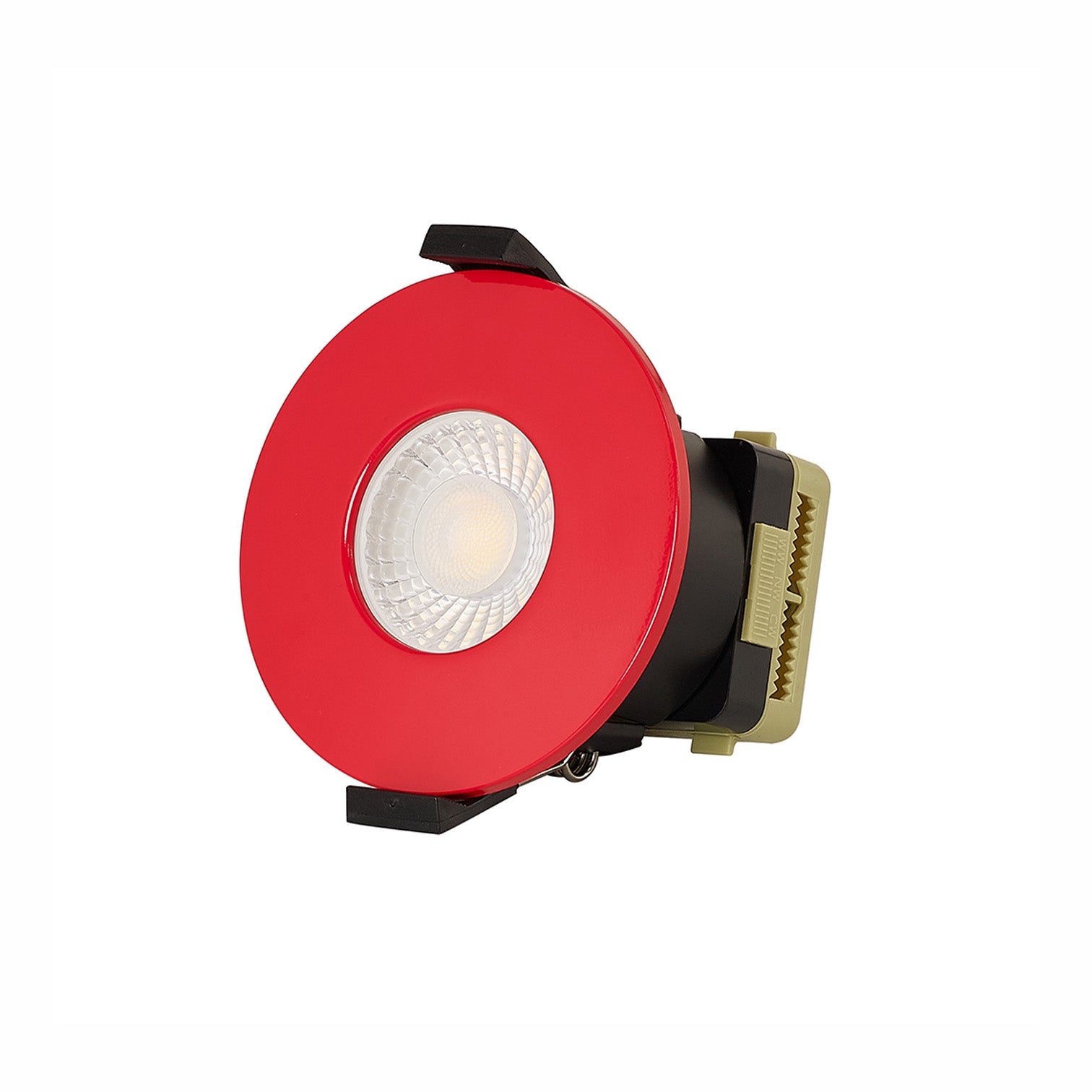

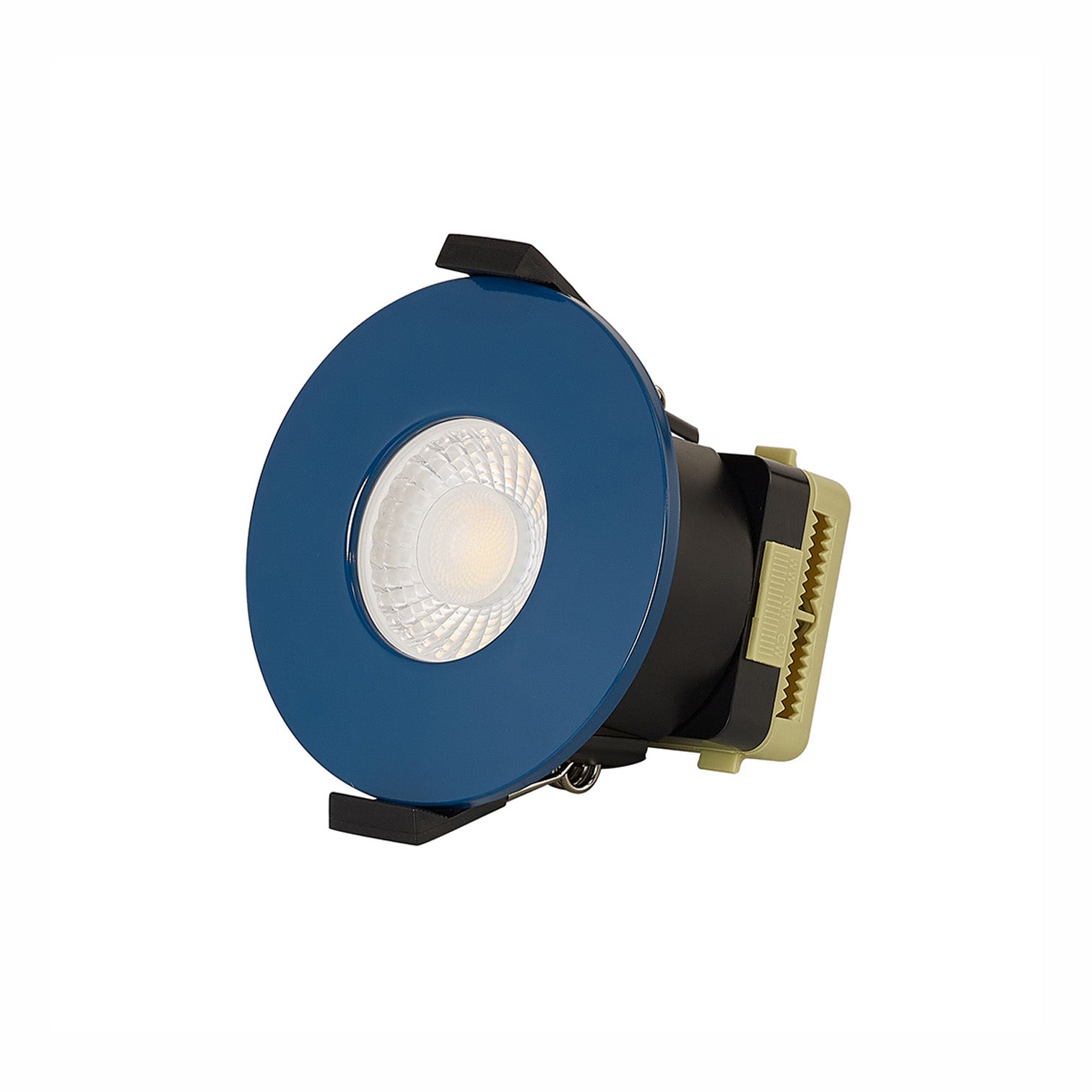

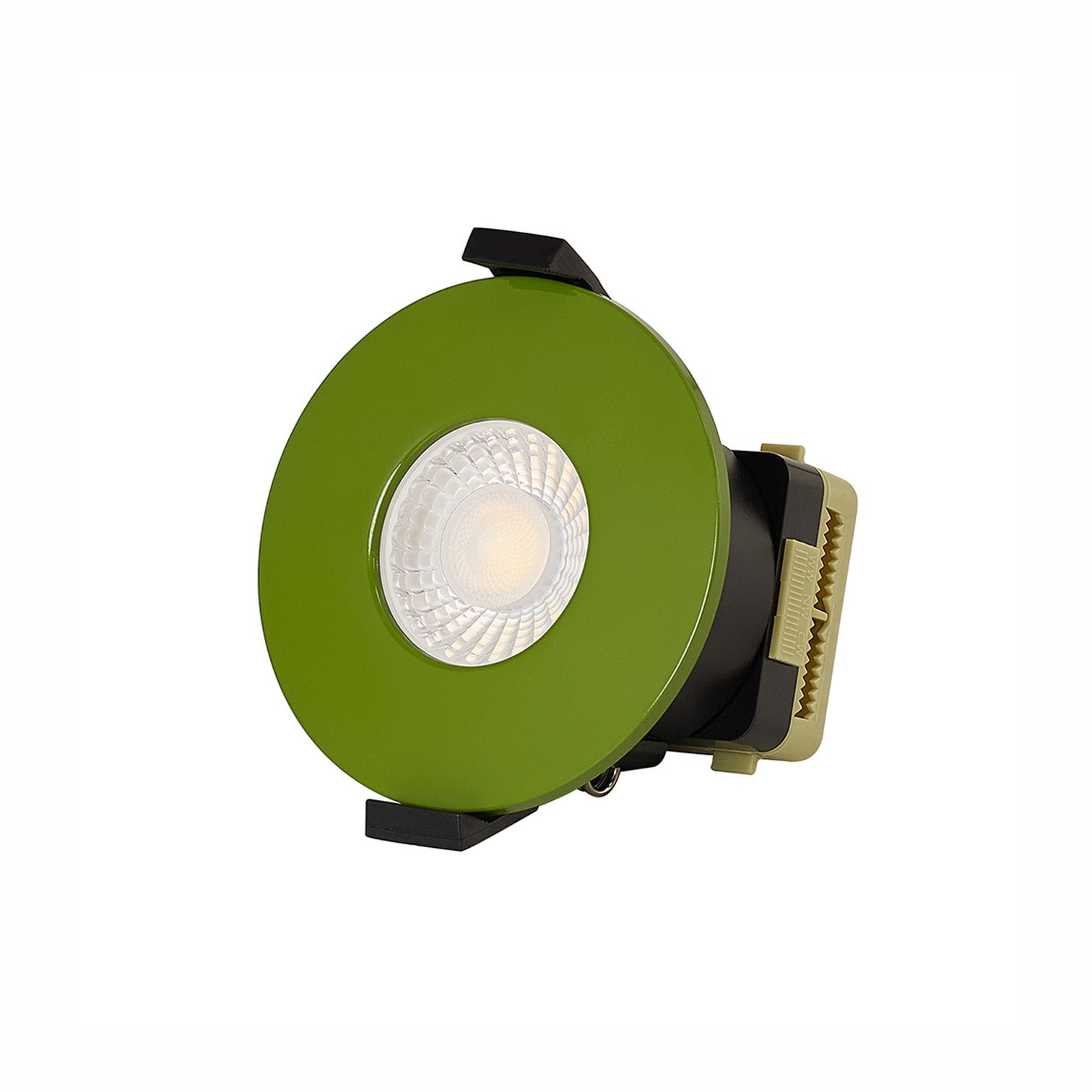

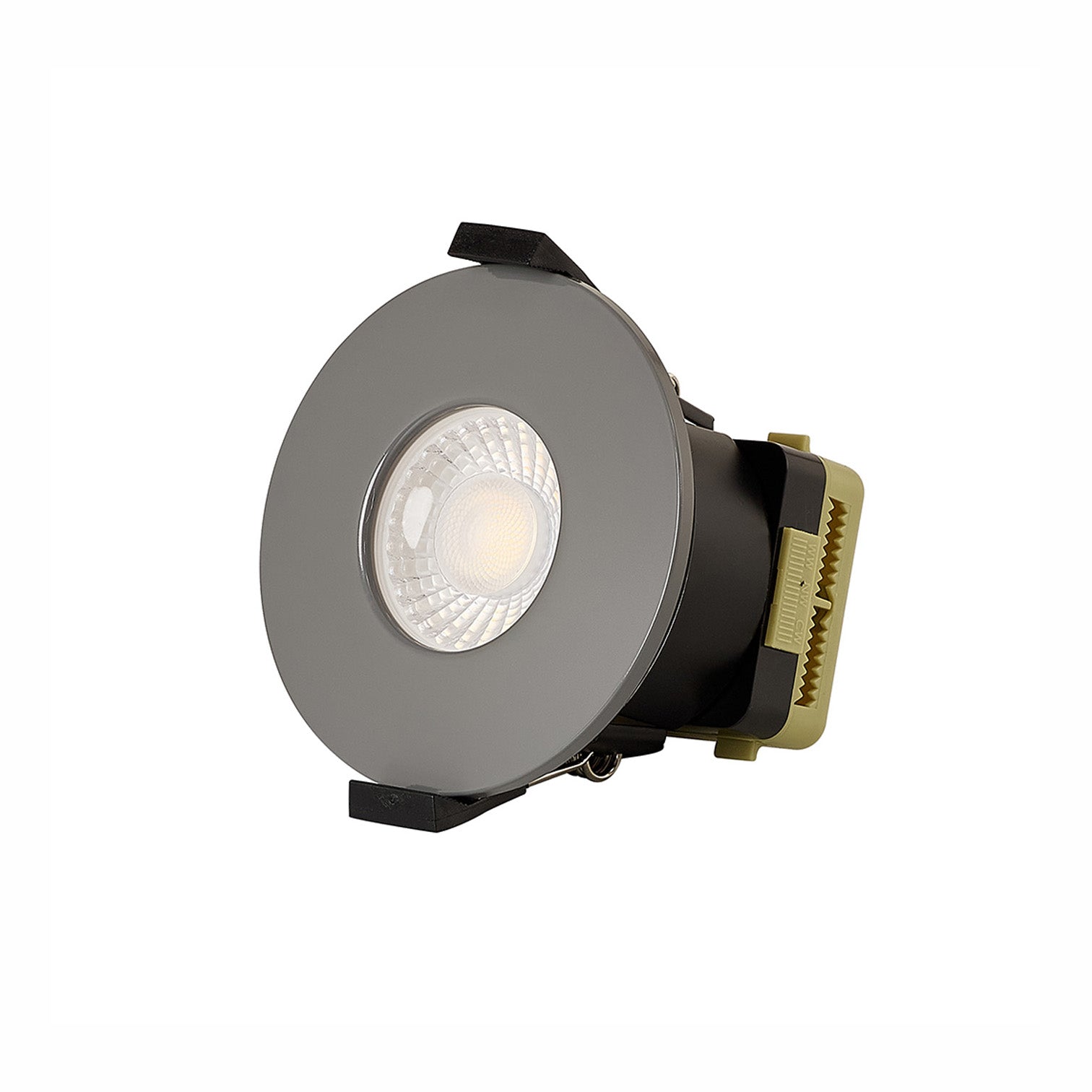

Colour Finish 29 Variations
Type of Finish Powder Coated
Recessable Yes
Item Nett Weight (kg) 0.2kg

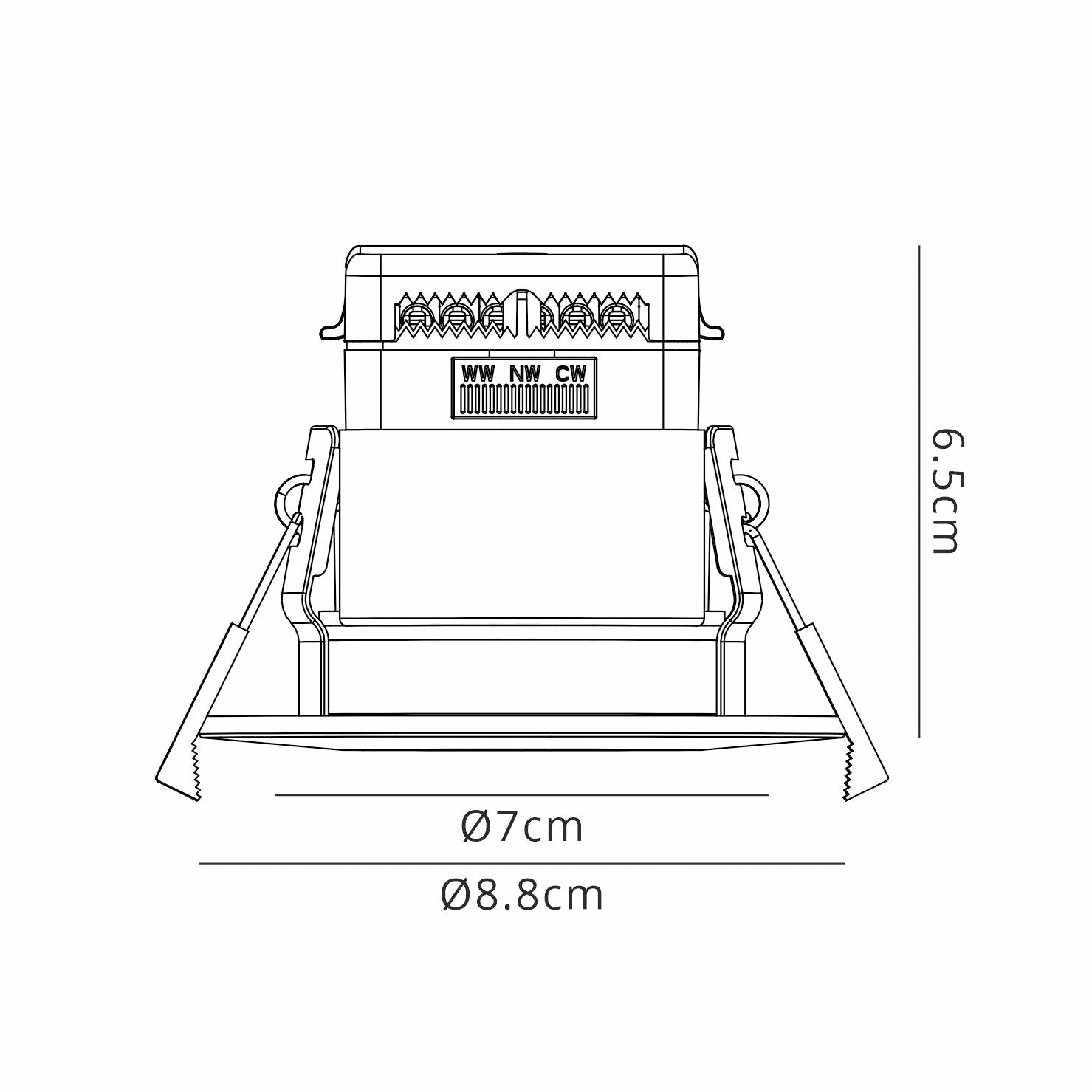

Diameter (mm) 88mm
Height (mm) 65mm
Horizontal Adjustment (°) No
Vertical Adjustment (°) No
Cut Out (mm) 70mm
Materials Used Aluminium + Plastic
Energy Class A++
No: of Lamp 1
Lamp Socket Integral LED
Recommended Lamp Integral LED
Max Wattage Lamp (W) 8W
Lamp Included Yes - Integrated
Type of Lamp Included Integrated LED

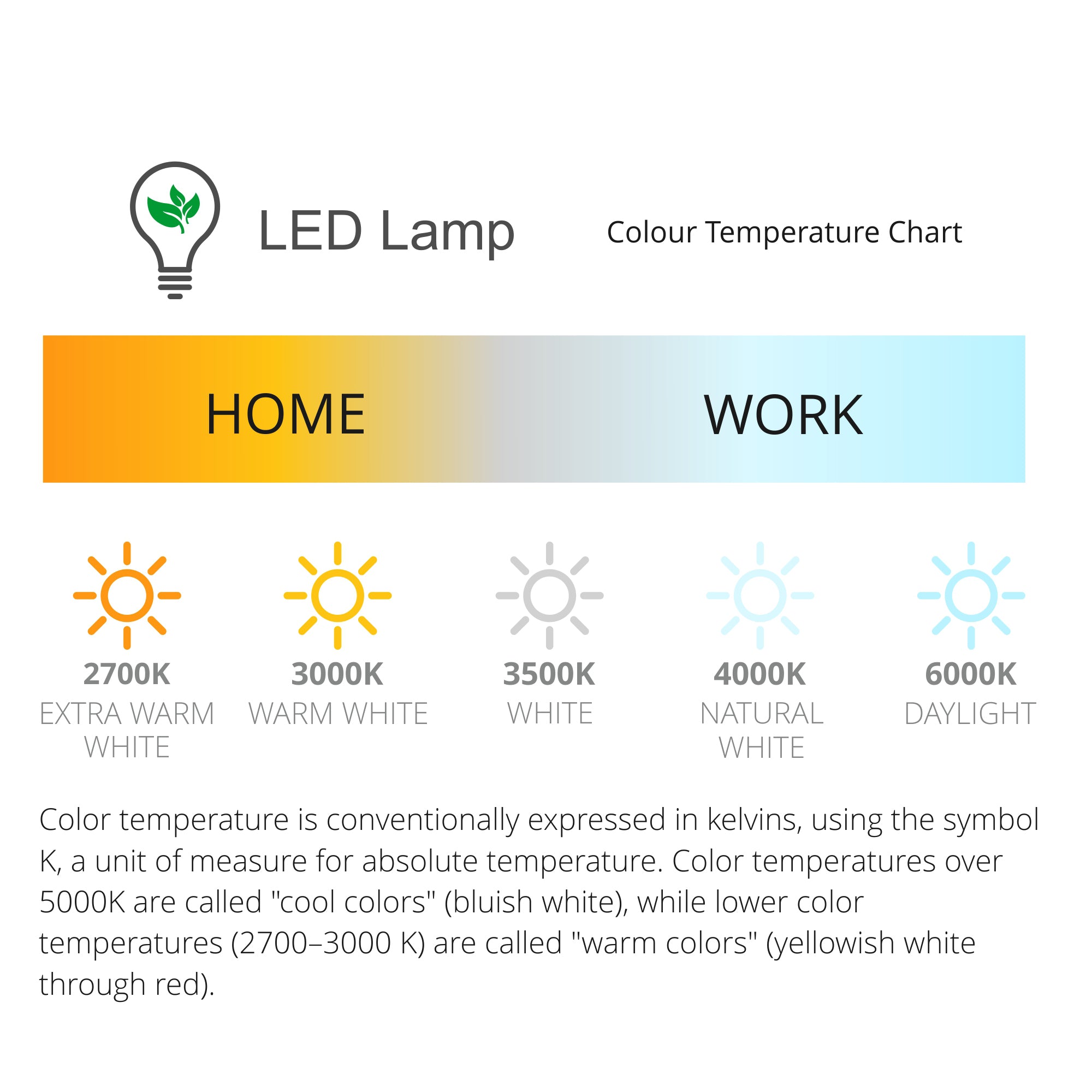

Colour Temperature (K) 3000/4000/6000K Warm/Cool/Daylight White ( ±5%)
Average Life of LED (hrs) 50000hrs
LED Voltage (V) 9.1V ( ±5%)
Type of LED SMD
Lumens Per LED 125Im
Beam Angle (°) 60°
System Flux (lm) 900Im ( ±5%)
CRI >80
UGR <=24

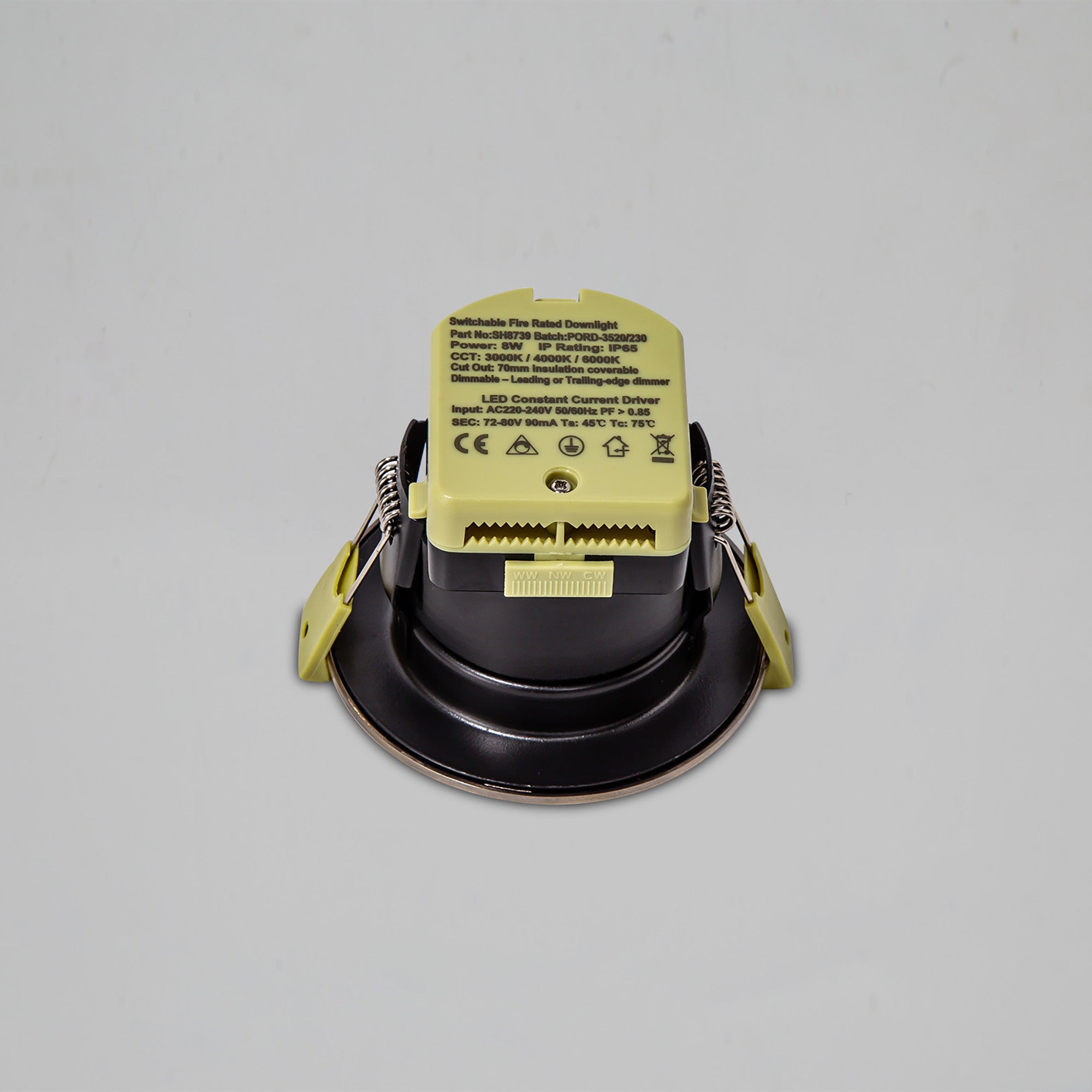

Driver Included Yes
Type of Driver Required Integrated
Type of Driver Constant Current
Power Factor (?) >0.85? ( ±5%)
Constant Current Output (mA) 90mA
Min/Max. Voltage Output (V) 72-80V DC
Load Range (W) 6.5-7.2W
Ta (°C) 45°
Tc (°C) 75°
Average Life Of Driver (hrs) 50000hrs
Wattage Required (W) 8W
Voltage Required (V) 220-240V~50/60Hz
Current Required (mA) 0.042A
Protection Class Class 1 - Earth Connection Required
Thermal Class Insulation Coverable
Total Power Consumption (W) 8W ( ±5%)
Input Voltage (V) 220-240V~50/60Hz
Input Current (A) 0.042A
Dimmable Yes - Suitable Dimmer Required
Dimmer Included No
IP Rating IP65
Average Life (hrs) 50000hrs
Warranty (yrs) 5yrs
CE Yes
Rohs Yes
EMV/EMC Yes
Additional Certification Fire Rated

These downlights are available to see in both our Halifax and Bradford Showrooms.

If you have any further questions, please give us a call on 01422 363 525
